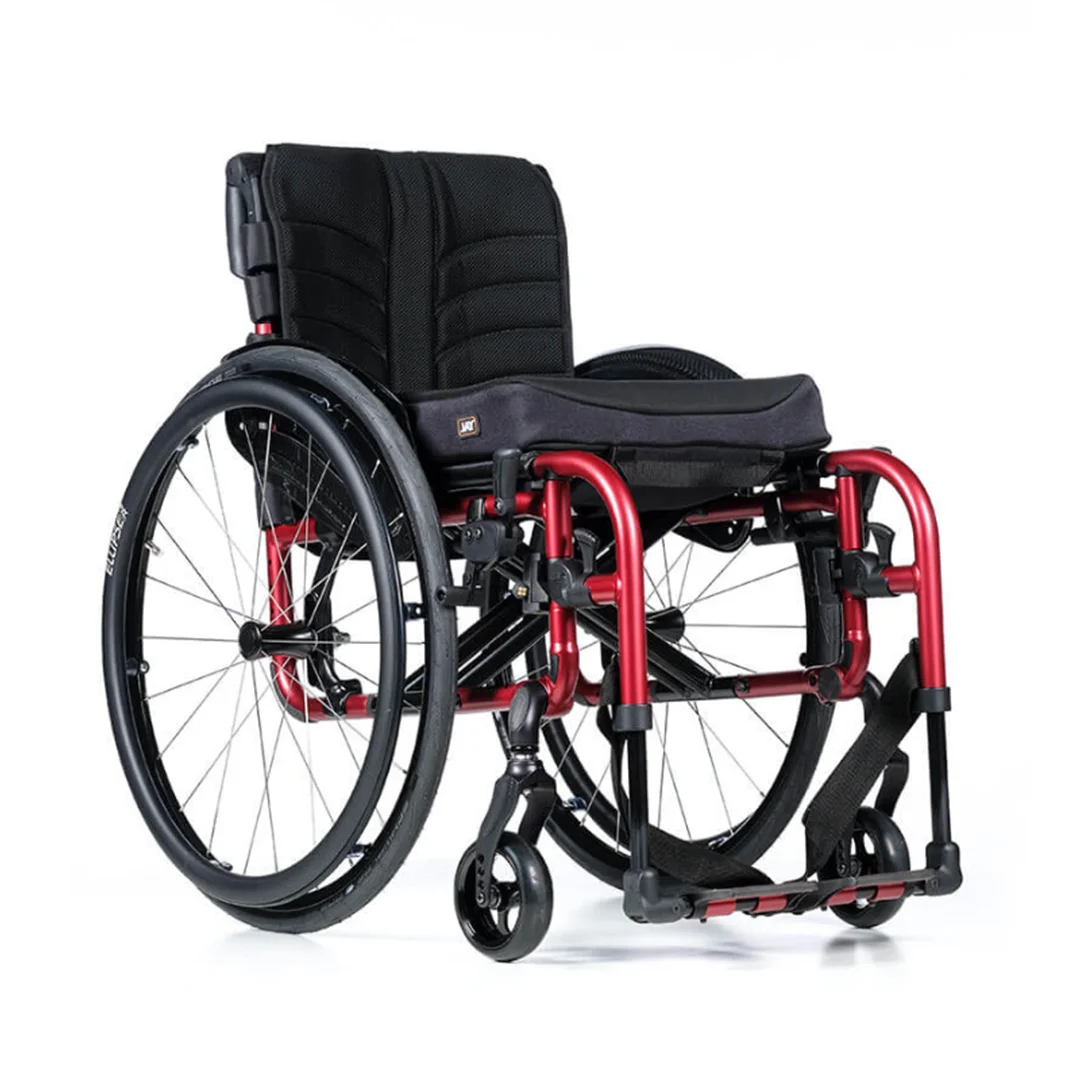

The QUICKIE QS5 X is a lightweight folding active wheelchair designed to combine convenient transport with responsive everyday performance.
Its FreeFold cross-brace geometry reduces the effort required to fold and unfold the wheelchair by more than 40%. A heat-treated 7000-series aluminium frame and ovalised four-arm cross-brace help minimise weight while retaining the strength and rigidity required by active users.
FreeFold Technology
The redesigned cross-brace geometry reduces the force needed to fold and unfold the wheelchair.
Lightweight Aluminium
The heat-treated 7000-series aluminium frame provides a high strength-to-weight ratio for lifting, transport and propulsion.
Rigid-Feeling Performance
Ovalised tubing and the four-arm cross-brace reduce unwanted frame flex while retaining a folding design.
Two Frame Versions
Choose between a fixed-front frame or swing-away legrests according to positioning, transfer and transport requirements.
Key Features
• Folding active wheelchair for regular independent use.
• FreeFold technology saves more than 40% effort with every fold.
• Ovalised four-arm cross-brace for increased rigidity.
• Fixed-front and swing-away frame versions available.
• Transport weight from 7.3kg without the rear wheels.
• Optional Fold-N-Lock keeps the wheelchair securely folded during handling.
• Wide choice of seat, wheel, frame and colour configurations.
• Frame designed to accommodate compatible power-assist systems.
• Crash tested to ISO 7176-19:2022.
Configured around the user: The QS5 X is available with numerous measurements, seating components and optional extras. The final specification and price will depend on the selected configuration.
You can also compare the QS5 X with other active wheelchairs available from Modern Mobility.
QUICKIE QS5 X Specifications
The measurements and weights below cover the QS5 X configuration range. Final dimensions and product weight will vary according to the selected frame, seat, wheels and accessories.
Frame type
Folding active wheelchair
Frame versions
Fixed-front or swing-away
Frame material
Heat-treated 7000-series aluminium
Overall width
Seat width plus 180, 240 or 270mm, depending on camber and wheel configuration
Overall length
1113mm
Overall height
1020mm
Seat width
340–540mm in 20mm increments
Seat depth
340–500mm
Front seat height
360–540mm
Rear seat height
350–520mm
Backrest height
250–500mm
Fixed-front frame angles
75° or 85°
Swing-away frame angles
70°, 80° or 90°
Rear wheel camber
0°, 2° or 4°
Rear wheel sizes
22, 24, 25 or 26 inches
Front wheel sizes
4, 5, 6 or 7 inches
Fixed-front total weight
From 9.9kg
Fixed-front transport weight
From 7.3kg without rear wheels
Swing-away total weight
From 10.1kg
Swing-away transport weight
From 7.5kg without rear wheels
Maximum user weight
140kg / approximately 22 stone
Maximum safe slope
7°
Crash tested
Yes – meets ISO 7176-19:2022 performance requirements
Manufacturer
Sunrise Medical
Weight clarification: Transport weight excludes the removable rear wheels. It should not be presented as the wheelchair’s complete operating weight.
Configuring the QUICKIE QS5 X
The QS5 X is a configurable wheelchair rather than a single fixed specification. Seat measurements, frame style, rear wheel position and supporting components should be selected around the user’s posture, transfers, propulsion and transport requirements.

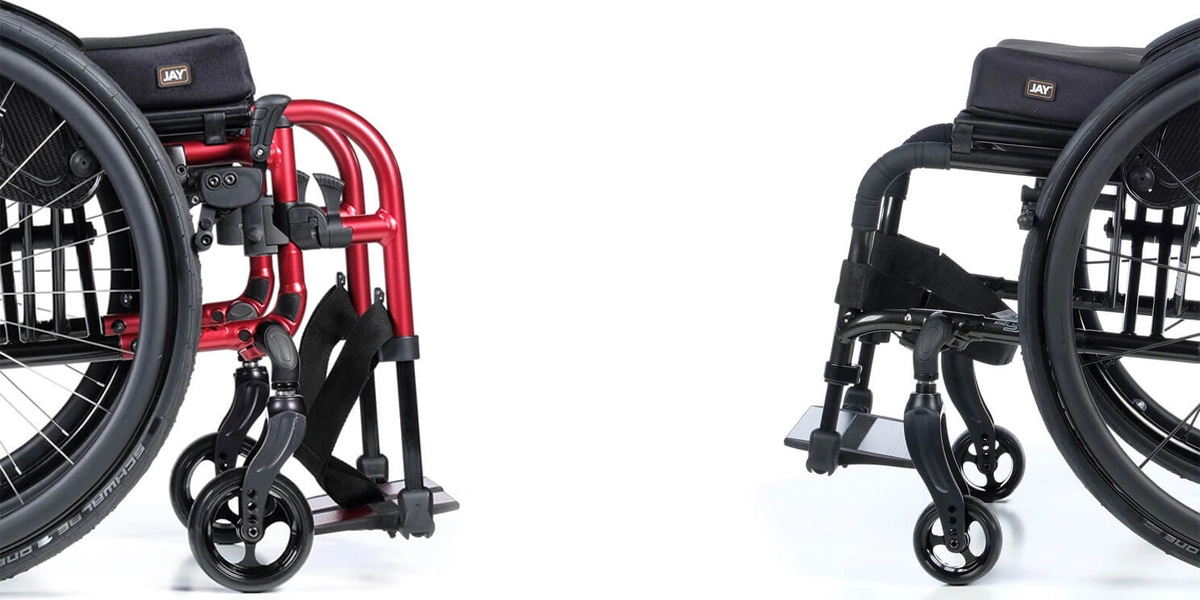

Fixed-Front or Swing-Away?
Two frame versions are available, allowing the wheelchair to be configured around the user’s positioning and transfer requirements.
Choose between fixed-front and swing-away QS5 X frame configurations.
Fixed-Front Frame
The footrest forms a permanent part of the wheelchair frame, creating a particularly rigid and streamlined configuration.
Starting weights: 9.9kg total or 7.3kg without the rear wheels.
Swing-Away Frame
The legrests move outwards and can be removed, helping provide clearer access for standing transfers and reducing the packed size.
Starting weights: 10.1kg total or 7.5kg without the rear wheels.
Measurements and Setup
Seat Size
Seat width and depth should support the user without restricting movement or leaving excessive space around the pelvis.
Seat Height
Front and rear seat heights influence foot position, access under tables, stability and the user’s overall sitting position.
Rear Wheel Setup
Rear wheel size, camber and position affect manoeuvrability, stability, pushing efficiency and overall wheelchair width.
Backrest Position
The backrest height and angle should suit the user’s required balance between upper-body support and freedom of movement.
Folding and Transportation
The rear wheels can be removed to reduce lifting weight, while the folding frame narrows the wheelchair for storage and vehicle transport. The optional Fold-N-Lock system holds the wheelchair securely in its folded position.
Always check the folded dimensions, lifting weight and available vehicle space for the final configuration rather than relying solely on the starting weights shown on this page.
Power-Assist Compatibility
The QS5 X frame incorporates forged front components designed to withstand the additional loads created by suitable power-assist equipment. Compatibility is not universal and must be checked against the chosen QS5 X frame, dimensions and power-assist model before ordering.
Professional configuration recommended: Active wheelchair performance depends heavily on the individual setup. Modern Mobility can help establish the appropriate measurements and available options before the order is finalised.
QUICKIE QS5 X FAQs
Answers to common questions about folding, weight, frame choice, transportation and power-assist compatibility.
Is the QUICKIE QS5 X a folding wheelchair?
Yes. Its FreeFold cross-brace design allows the wheelchair to fold laterally for storage and transportation while retaining the responsiveness expected from an active wheelchair.
What is the difference between fixed-front and swing-away frames?
The fixed-front version has an integrated footrest for a rigid and streamlined setup. The swing-away version has movable, removable legrests that can provide clearer access during standing transfers.
Does the QS5 X weigh 7.3kg?
The fixed-front QS5 X has a starting transport weight of 7.3kg after the rear wheels have been removed. Its starting complete weight is 9.9kg. The final weight depends on the selected configuration.
What does FreeFold mean?
FreeFold is QUICKIE’s cross-brace geometry designed to reduce the effort needed to fold and unfold the wheelchair by more than 40%.
Can a power-assist device be fitted?
The QS5 X is designed to work with suitable power-assist equipment, but compatibility depends on the frame version, wheelchair measurements and chosen device. The complete configuration should be checked before ordering.
Is the QS5 X crash tested?
Yes. Sunrise Medical states that the QS5 X meets the performance requirements of ISO 7176-19:2022. Vehicle transportation must follow the manufacturer’s instructions and use an approved configuration and restraint system.
Is Fold-N-Lock included as standard?
Fold-N-Lock is an optional feature that holds the wheelchair securely closed after folding. Confirm its inclusion when agreeing the final specification.
Does the advertised price include every option?
No. The displayed starting price relates to a standard configuration. Seating components, wheels, frame choices, accessories and other upgrades may change the final price.
