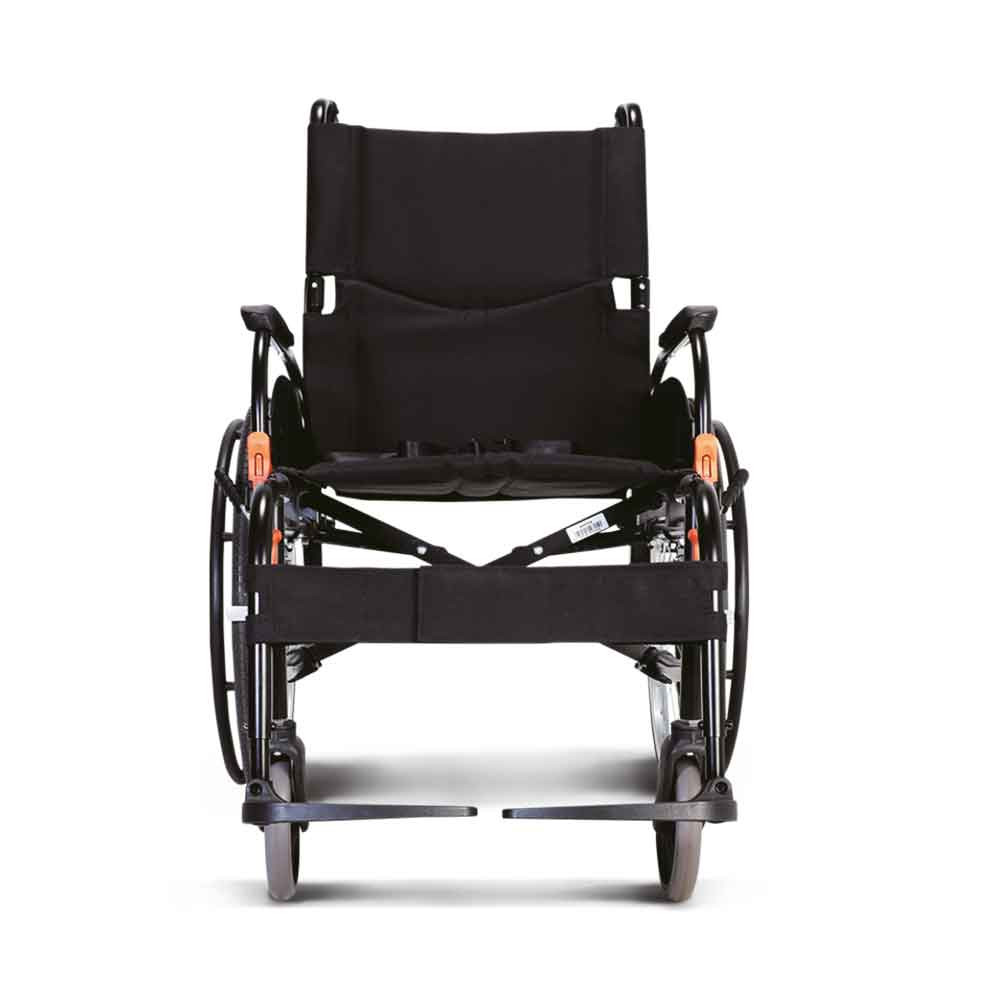

The Karma Agile is a configurable lightweight wheelchair available in transit and self-propelled versions, with 16″, 18″ or 20″ nominal seat widths. Its folding frame, flip-back armrests and removable footrests support everyday mobility, transfers and transportation.
Each version supports a maximum user weight of 125kg (approximately 19 stone 10lb). Select the required seat width and propulsion type before ordering; correct sizing and setup should be confirmed for the individual user.
If you’re disabled or have a long-term illness, you will not be charged VAT on products designed or adapted for your own personal or domestic use.
To find out more information contact one of our mobility experts or visit the government website for further advice.
All you need to do is add everything to your basket and when you are ready to checkout just simply click the shopping cart icon in the top right of the screen. Once you have entered your details you will be asked ‘Are you eligible for VAT Exemption?’ and if you qualify click the ‘Disability VAT Exemption’ option and continue to fill in the form once you have completed the form your cart will change to show VAT at £0.
The Karma Agile is a configurable lightweight wheelchair available in transit and self-propelled versions. Its folding frame, transfer-friendly armrests and removable footrests make it suitable for everyday mobility, appointments and transportation.
A Configurable Lightweight Wheelchair
Part of KARMA Medical’s SOMA manual-wheelchair series, the Agile combines a folding aluminium frame with a wide choice of configurations. Modern Mobility offers nominal seat widths of 16″, 18″ and 20″, allowing the chair to be selected around the user’s individual seating requirements.
The wheelchair can be ordered as an attendant-propelled transit model or with larger rear wheels and handrims for self-propulsion. Both versions support a maximum user weight of 125kg, approximately 19 stone 10lb.
Transit or Self-Propelled
Two propulsion configurations
16″, 18″ or 20″
Nominal seat-width options
125kg
Maximum user weight
Folding Frame
For storage and transportation
Transit or Self-Propelled

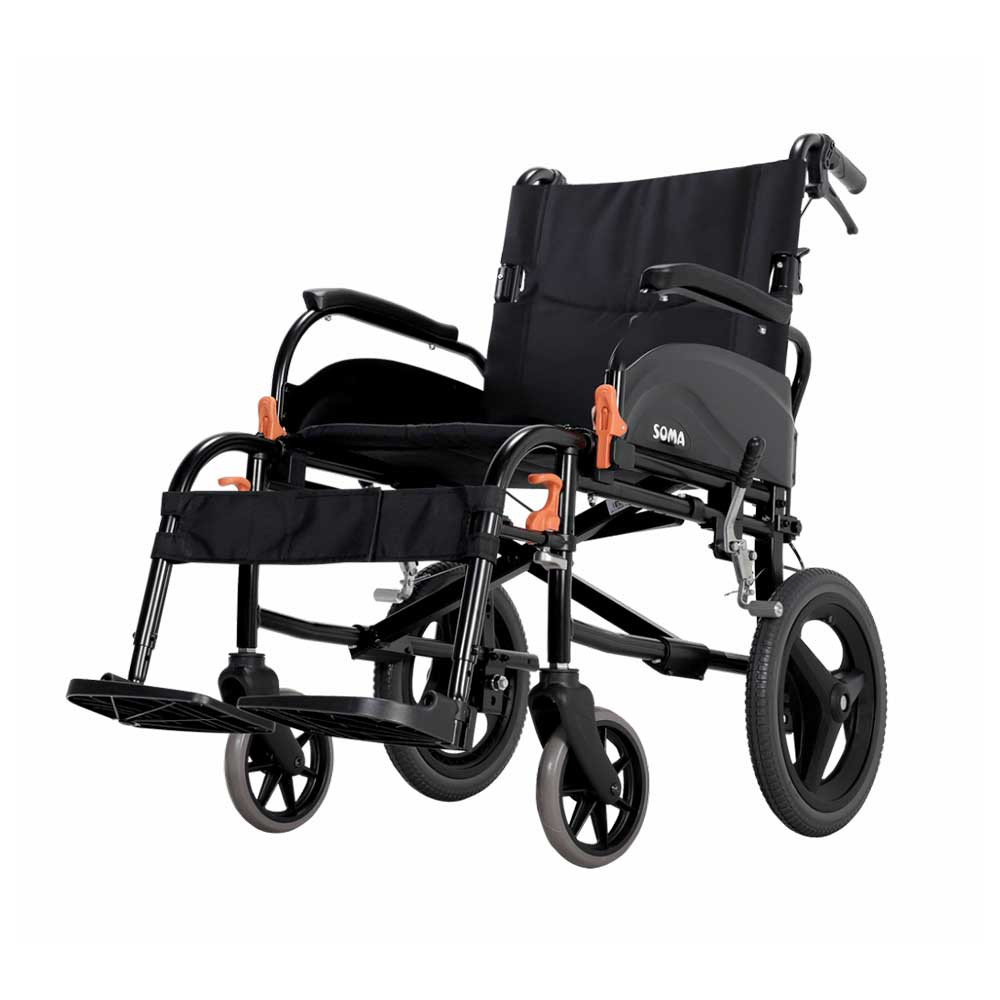

Transit Wheelchair
The transit version uses smaller 14″ rear wheels and is designed to be pushed and controlled by an attendant. It is the more appropriate choice when the occupant will not propel the wheelchair independently.

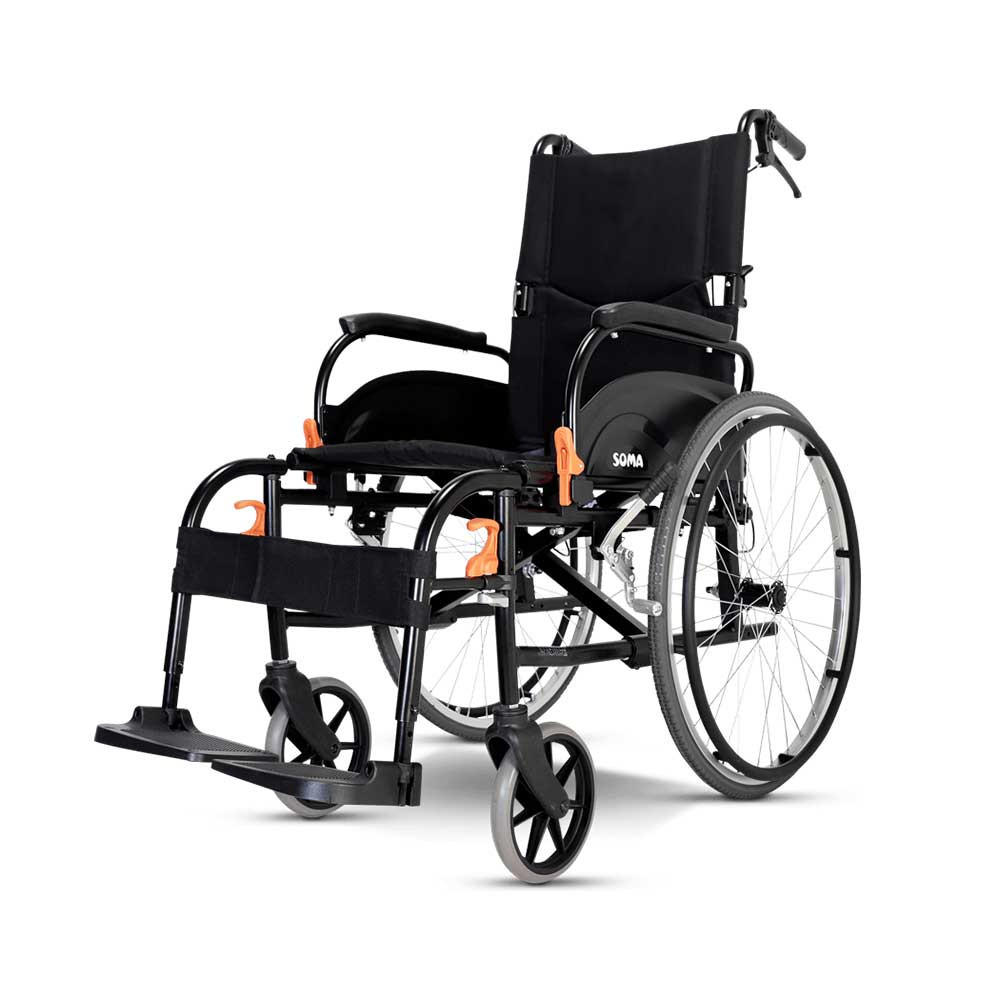

Self-Propelled Wheelchair
The self-propelled version has larger 24″ quick-release rear wheels with handrims. These allow a suitably assessed user to propel the wheelchair or an attendant to push it when assistance is required.
Select carefully: The two versions have different rear wheels, dimensions and handling characteristics. Choose the required propulsion type and seat width before adding the wheelchair to your basket.
Designed Around Easier Transfers
The armrests can be flipped back to provide improved access for side transfers and closer positioning beside a suitable chair, bed or table. The 80° footrests can be swung away or removed to create additional space around the front of the wheelchair.
Footrest length can be adjusted to support an appropriate lower-leg position. The footplates must be raised or moved clear during transfers and should never be used as a platform for standing.
Adjustable Rear-Wheel Position
The Agile’s rear-wheel extension plate allows the axle position to be adjusted to influence manoeuvrability and stability. Moving the rear wheels forwards can make a self-propelled wheelchair more responsive, while a rearward position generally provides greater stability.
Axle changes also affect the position and operation of the wheelchair brakes. This adjustment should therefore be completed by Modern Mobility or another suitably qualified wheelchair professional rather than treated as a routine user adjustment.

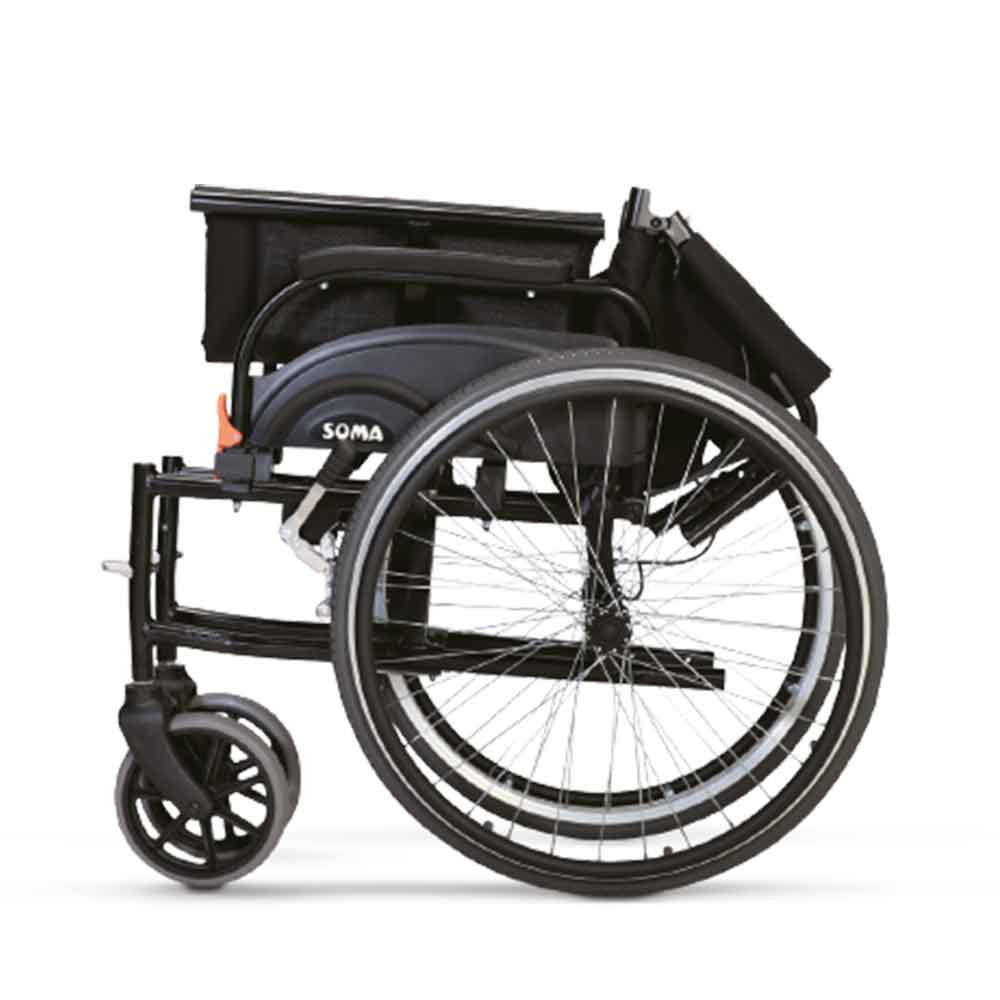

Folding for Storage and Transport
The cross-braced frame folds from side to side to reduce its width to approximately 280mm. Removable footrests and, on the self-propelled model, quick-release rear wheels allow the wheelchair to be separated into more manageable components for storage and vehicle loading.
Watch the Karma Agile in Action
This product overview demonstrates the Agile wheelchair’s key adjustment, transfer and folding features. The exact equipment shown may differ from the configuration supplied.
The Karma Agile is available in three nominal seat widths and two propulsion configurations. Dimensions and weights differ according to the selected seat size, rear-wheel type and fitted components.
Choosing a Propulsion Type
Configuration
Transit
Self-Propelled
Rear Wheels
14"
24" quick-release wheels with handrims
Primary Operation
Pushed by an attendant
Occupant self-propulsion or attendant assistance
Front Castors
8"
8"
Maximum User Weight
125kg
125kg
Dimensions by Seat Width
Nominal Seat Width
16" Narrow
18" Standard
20" Wide
Nominal Seat Depth
16"
18"
18"
Effective Seat Width
430mm
480mm
530–535mm
Effective Seat Depth
505mm
555mm
555mm
Transit Overall Width
600mm
650mm
700mm
Self-Propelled Overall Width
605mm
655mm
705mm
Transit Overall Length
1025–1035mm
1085–1095mm
1085–1095mm
Self-Propelled Overall Length
1065–1070mm
1115–1120mm
1115–1120mm
Approximate Total Weight
12.2–14.4kg
12.5–14.7kg
12.7–14.9kg
Nominal and effective measurements
The advertised 16", 18" and 20" sizes are nominal product options. Effective seat measurements describe the usable seating space and can therefore differ from a direct conversion of the nominal imperial size.
General Specifications
Manufacturer
KARMA Medical
Model
Agile AGL
Product Series
SOMA manual-wheelchair series
Frame Type
Folding manual-wheelchair frame
Maximum User Weight
125kg (approximately 19 stone 10lb)
Front Seat Height
505mm
Backrest Height
510mm on the published Modern Mobility configuration
Armrest-to-Seat Distance
220mm
Footrest-to-Seat Adjustment
380–480mm
Folded Width
Approximately 280mm
Armrests
Flip-back
Footrests
80° swing-away and removable
Self-Propelled Rear Wheels
24" quick-release wheels with handrims
Transit Rear Wheels
14" attendant-propelled wheels
Transport Testing
Tested to ISO 7176-19 when used in accordance with the manufacturer’s transport instructions
Check sizing before ordering: Seat width, seat depth, footrest position and overall chair dimensions should be assessed against the user and intended environment. The manufacturer allows normal production tolerances and specifications can vary slightly with configuration.
Configuration and Accessories
KARMA produces the Agile with a wider range of possible backrests, wheel sizes, armrests and accessories than those shown in the product selectors. Optional equipment can include anti-tippers, a pelvic belt, cane holder, oxygen-bottle holder and other positioning components.
Availability varies by configuration and region. Contact Modern Mobility before ordering if the user requires a particular adjustment or accessory that is not shown among the selectable product options.
Using and Caring for the Karma Agile
Read the complete KARMA user instructions before using the Agile. Correct sizing, adjustment and user training should be provided by Modern Mobility or another suitably qualified professional.
Important: The wheelchair is designed for one occupant with a maximum weight of 125kg. It must not be used to carry additional passengers or loads that could affect stability and control.
Before Each Use
• Check that the wheelchair opens fully and that the seat upholstery lies correctly across the frame.
• Confirm that the rear wheels are securely fitted. On the self-propelled version, pull gently on each quick-release wheel to ensure its axle has fully locked.
• Check that the footrests, armrests and any fitted accessories are securely positioned.
• Test both parking brakes before the occupant transfers into the wheelchair.
• Inspect the tyres, castors and wheel fixings for visible damage, excessive wear or trapped debris.
• Confirm that anti-tippers and other safety accessories are correctly positioned where fitted.
Transfers
Position the wheelchair on firm, level ground and apply both parking brakes before transferring. Move the footplates and footrests clear of the transfer area and flip back the armrest where appropriate.
Never stand on the footplates and do not use the footrests or armrests to lift the wheelchair. Anyone who requires physical assistance or specialised transfer equipment should follow advice from an appropriate healthcare professional.
Brakes and Wheelchair Control
The wheel locks are parking brakes. They should be applied when the wheelchair is stationary and during transfers, but they are not designed to slow a moving wheelchair.
Brake position must be checked whenever the rear-wheel or axle position is changed. Stop using the wheelchair if either brake fails to hold its wheel securely.
Slopes, Kerbs and Uneven Ground
Take additional care on slopes, ramps, loose surfaces, wet ground and changes in level. Sudden turns or changes in body position can affect stability, particularly where the rear axle has been configured for greater manoeuvrability.
Use dropped kerbs and accessible routes wherever possible. Kerbs, steps and steep gradients should only be negotiated using an appropriate technique and with trained assistance. Never use the wheelchair on an escalator.
Folding and Lifting
1. Remove any loose cushion, bag or accessory.
2. Swing away or remove both footrests.
3. On the self-propelled model, remove the quick-release rear wheels if a lighter or more compact package is required.
4. Lift the centre of the seat upholstery so that the frame folds inwards from both sides.
5. Secure all removed components before placing them in a vehicle.
Assess the weight of each component before lifting. Use the fixed frame members rather than the removable armrests, footrests or wheels as lifting points.
Occupied Vehicle Transport
Wherever practicable, the occupant should transfer to the vehicle’s fitted seat and use its restraint system. A wheelchair should only be occupied during vehicle transport when its supplied configuration is approved for that purpose and the vehicle has suitable wheelchair-accessible equipment.
When used as a transport seat, the Agile must face forwards and be secured at the designated frame points using an approved four-point wheelchair tie-down system. The occupant must also use an appropriate vehicle-anchored restraint system. Postural belts supplied with wheelchairs do not replace vehicle occupant restraints.
Transport assessment required: Wheelchair configuration, accessories and seating components can affect transport approval. Confirm the intended vehicle setup with Modern Mobility and the transport provider before travelling while seated in the wheelchair.
Cleaning
Wipe the frame and plastic components using a soft cloth with warm water and a mild cleaning product. Remove dirt and hair from the castors, axles and moving parts, then dry the wheelchair thoroughly.
Follow the care instructions supplied with the upholstery and any removable cushion. Do not use abrasive products, corrosive chemicals or high-pressure cleaning equipment.
Regular Maintenance
• Check the parking brakes for correct operation and tyre clearance.
• Inspect the tyres and castors for wear, damage or uneven movement.
• Check quick-release axles and wheel bearings for secure engagement and smooth rotation.
• Inspect the frame, cross-brace, upholstery, armrests and footrests for damage or looseness.
• Check that all nuts, bolts and adjustment components remain secure.
• Arrange professional inspection if the wheelchair has been involved in an impact, shows signs of damage or no longer handles as expected.
Store the wheelchair in a clean, dry location away from prolonged direct sunlight and extreme temperatures. Apply the parking brakes when storing it in an open position.
Karma Agile Wheelchair FAQs
Answers to common questions about the Karma Agile transit and self-propelled wheelchair.
Is it called the Karma Agile or SOMA Agile?
The official product name is the Karma Agile, model AGL. SOMA is the name of the wider KARMA manual-wheelchair series to which the Agile belongs.
Is the Karma Agile a transit or self-propelled wheelchair?
It is available in both configurations. The transit version has smaller 14" rear wheels and must be pushed by an attendant. The self-propelled version has larger 24" rear wheels and handrims for occupant propulsion where appropriate.
Which seat widths are available?
Modern Mobility offers nominal seat widths of 16", 18" and 20". These correspond to effective seating widths of approximately 430mm, 480mm and 530–535mm respectively.
What is the maximum user weight?
The maximum user weight is 125kg, equivalent to approximately 19 stone 10lb. This limit applies to both transit and self-propelled configurations.
How much does the Karma Agile weigh?
Depending on its seat size, backrest and rear-wheel configuration, the complete wheelchair weighs approximately 12.2–14.9kg. The self-propelled rear wheels can be removed to reduce the weight of the section being lifted.
Does the Karma Agile fold?
Yes. Its cross-braced frame folds from side to side to approximately 280mm wide. The footrests can be removed, while the self-propelled version also has removable quick-release rear wheels.
Are the armrests removable?
The armrests flip backwards to provide additional access for side transfers and positioning beside suitable furniture. They should not be used as lifting points.
Can the footrests be adjusted?
Yes. The 80° footrests can be swung away or removed, and the footrest-to-seat distance can be adjusted between approximately 380mm and 480mm. They must be securely refitted before use.
Can a transit Karma Agile be converted to self-propelled?
The Agile frame supports different rear-wheel arrangements, but conversion requires the correct wheels, axle components and brake setup. It should only be completed by Modern Mobility or another qualified wheelchair supplier.
Can the rear-wheel position be adjusted?
Yes. The axle extension plate provides different rear-wheel positions that affect manoeuvrability, stability and brake alignment. This is a professional setup adjustment rather than a routine user adjustment.
Can the Karma Agile be used outdoors?
It is intended for indoor and outdoor mobility on appropriate accessible surfaces. Additional care and assistance may be required on ramps, slopes, loose ground, wet surfaces and changes in level.
Is the Karma Agile crash tested?
The Agile has been tested to ISO 7176-19. Where an approved configuration is occupied during vehicle transport, it must face forwards and be secured with an appropriate four-point wheelchair tie-down and vehicle-anchored occupant-restraint system.
How do I choose the correct Karma Agile configuration?
Consider whether the chair will be attendant-pushed or self-propelled, the required seat width and depth, the user’s lower-leg length and the dimensions of doorways, storage spaces and vehicles. Contact Modern Mobility if professional sizing or configuration advice is required.
