A paediatric wheelchair cushion designed for skin protection and mild positioning. The original JAY ZIP combines a child-specific dual-layer foam base with microclimatic and moisture-resistant covers.
Child-Specific Wheelchair Cushion
The original JAY ZIP Cushion was developed using anthropometric data to provide sizes appropriate for paediatric seating. Its contoured foam base is designed to support skin protection and mild positioning without unnecessarily restricting movement.
Available in widths from 200–400mm and depths from 200–460mm, the cushion can be configured around the child and wheelchair following a professional clinical assessment.
200–400mm
Available widths
200–460mm
Available depths
75kg
Maximum user weight
50mm
Front cushion height

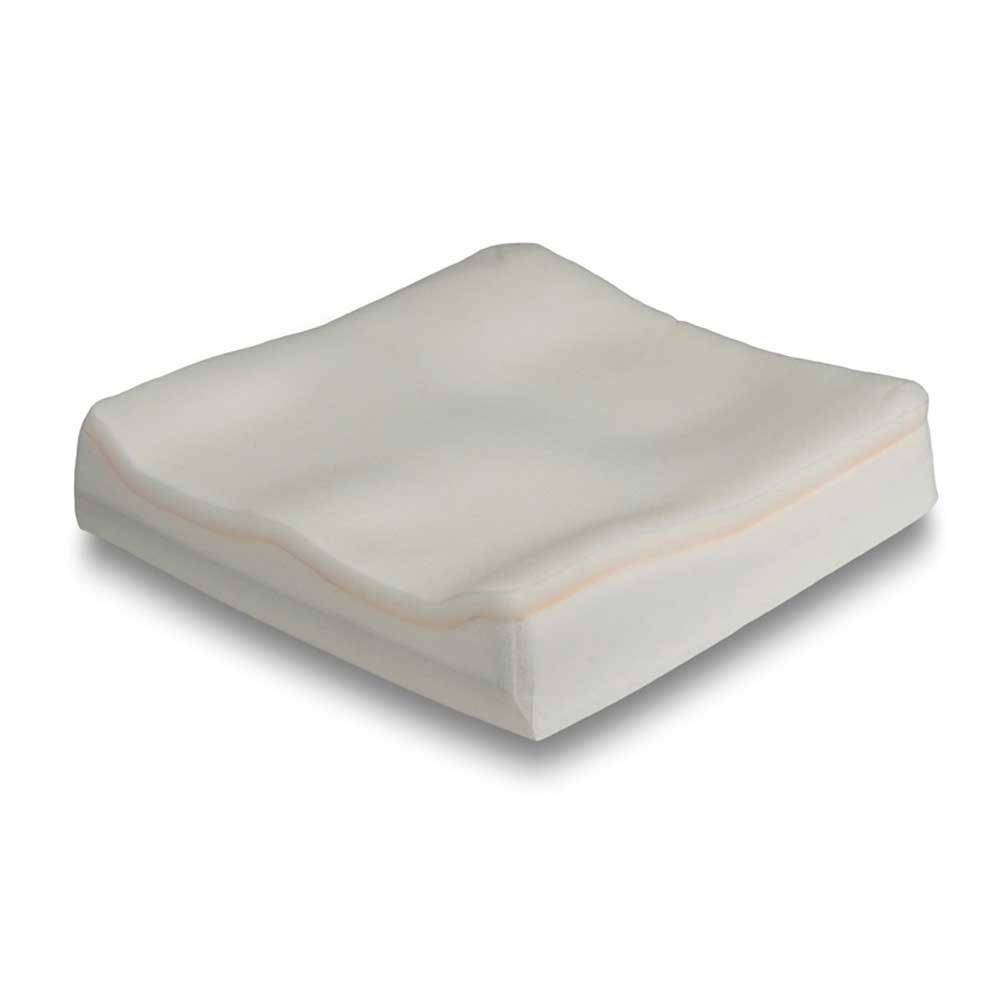

Dual-Layer Contoured Foam
The contoured base uses two foam layers to combine structural support with comfort. Foam firmness increases with cushion width, recognising that a child using a smaller cushion may require a different level of firmness from someone using a wider configuration.
The cushion is designed to help reduce pressure and shear. However, Sunrise Medical states that no cushion can completely eliminate sitting pressure or prevent pressure injuries.
Microclimatic Outer Cover
The soft, stretchable outer cover incorporates 3DX™ spacer fabric to promote air movement. Its Ionic+™ fabric contains silver and is designed to inhibit bacterial growth.

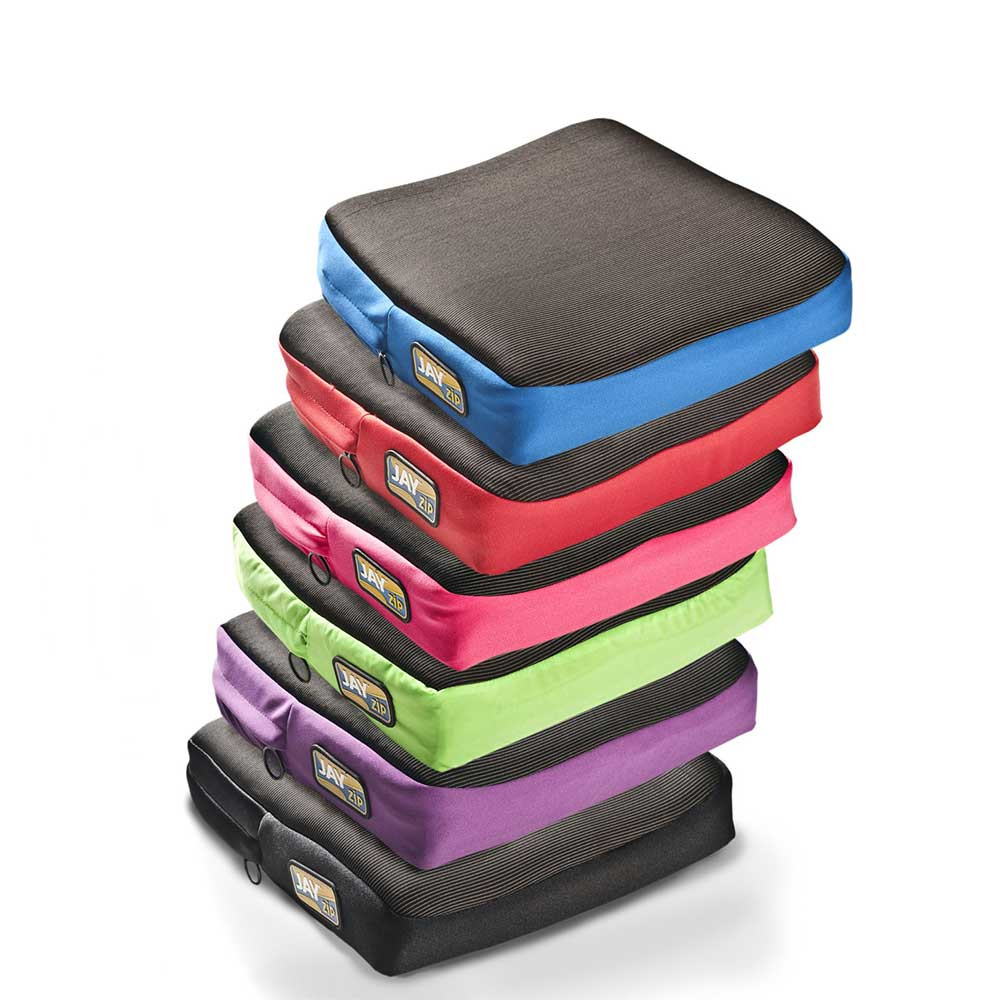

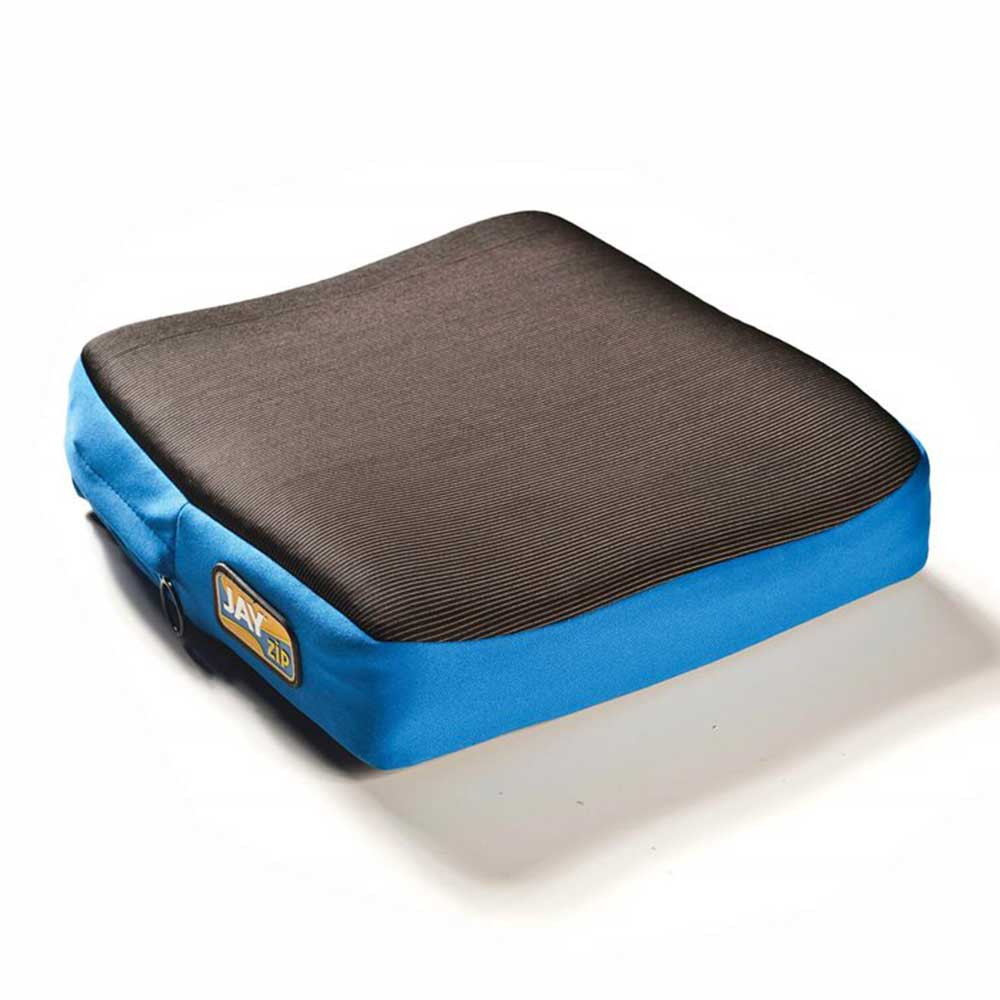

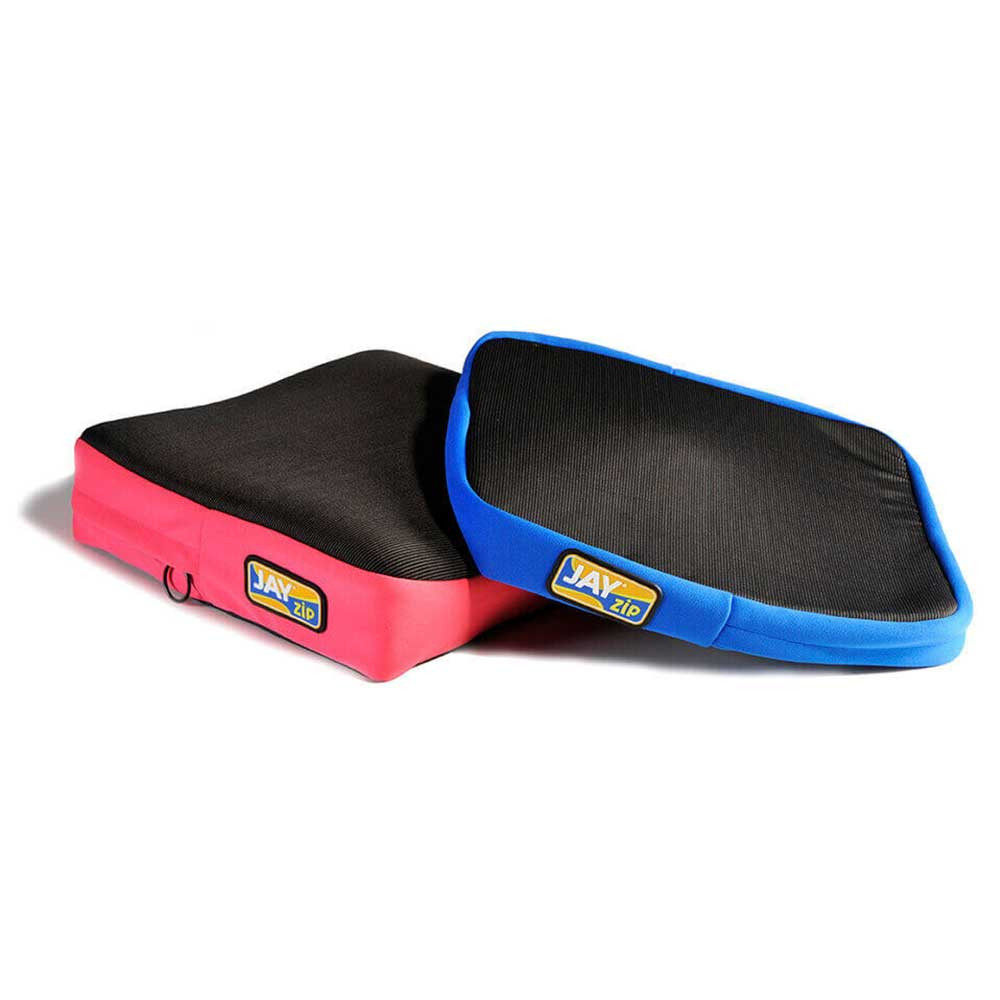

Black is the standard cover colour. Additional spare outer covers may also be available in pink or blue, subject to the selected configuration and current availability.

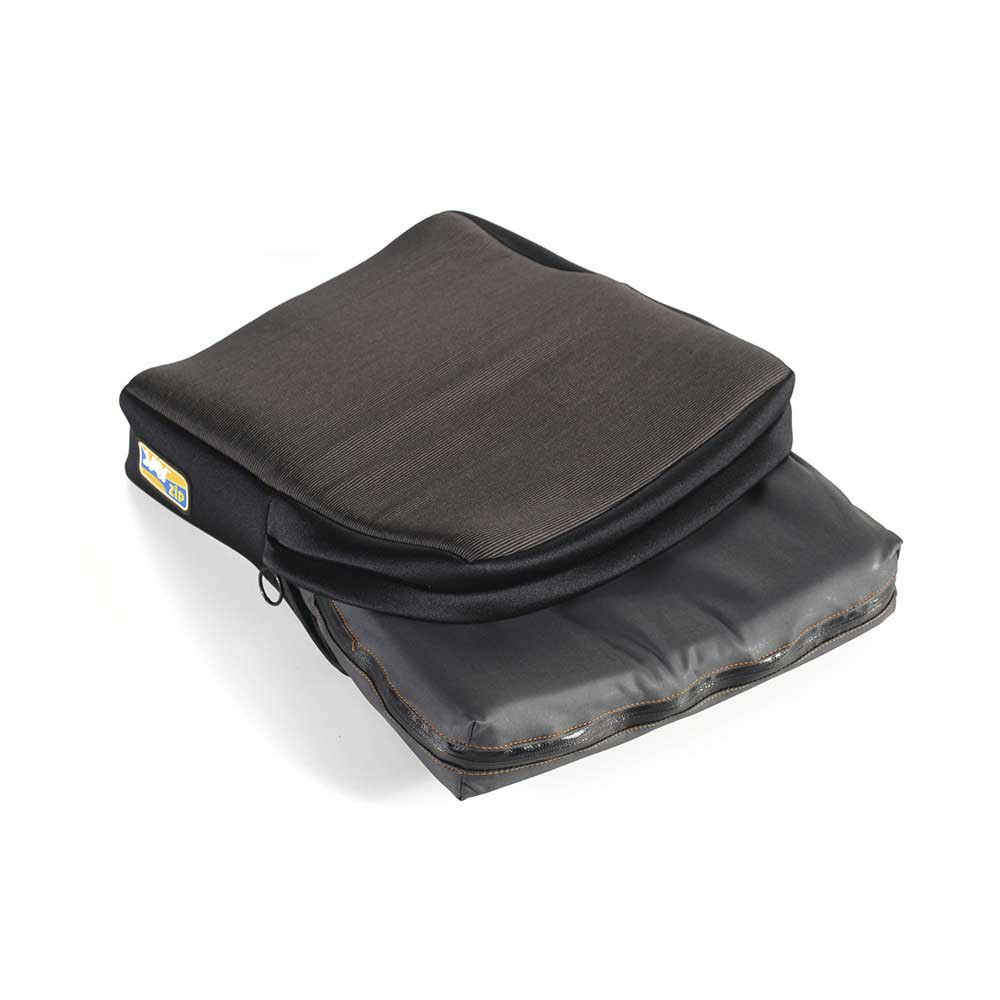

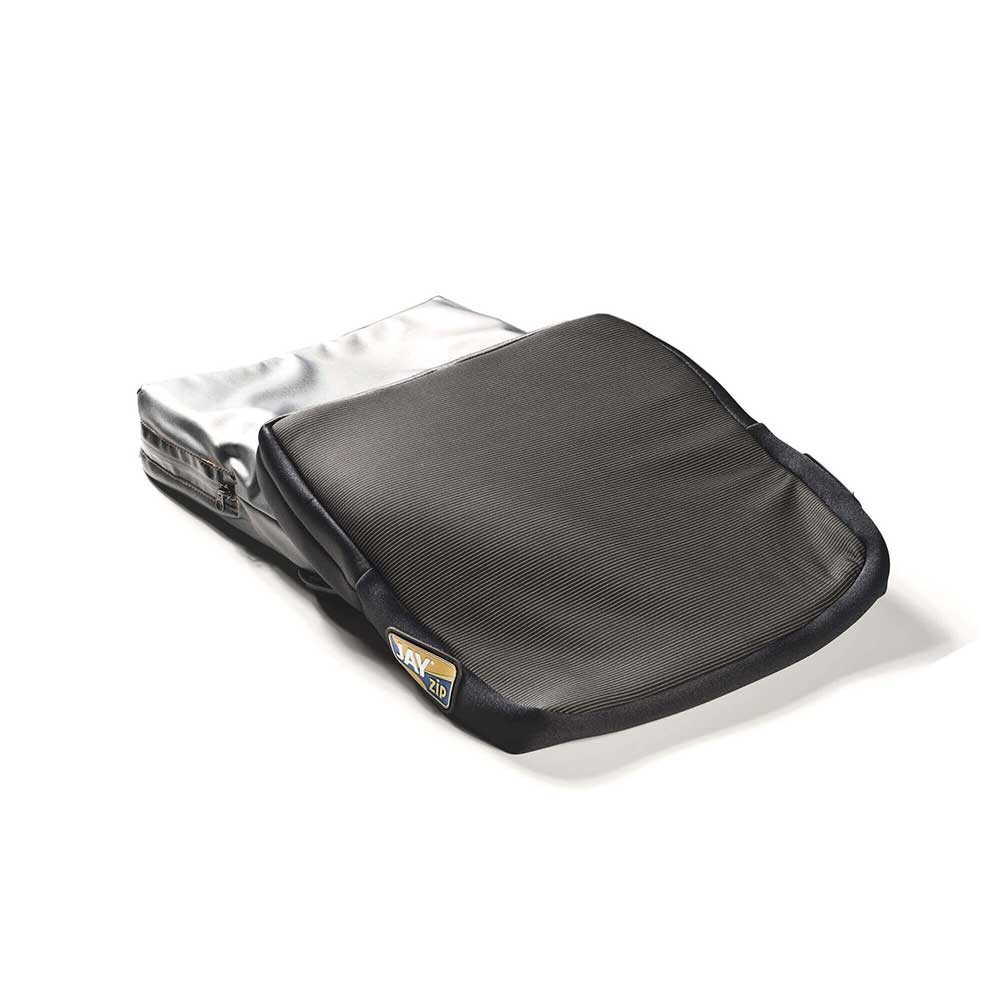

Moisture-Resistant Inner Cover
A moisture-resistant inner cover provides an additional protective layer around the foam base. It includes an Aquaguard™ moisture-resistant zip and anti-wicking seam thread.
The inner cover can be wiped clean, while the removable outer cover can be machine washed at 60°C in accordance with the manufacturer’s instructions.
Professional assessment required: Sunrise Medical recommends that suitability and sizing are determined by a clinician experienced in wheelchair seating and positioning. The cushion should be fitted by an authorised supplier.
Original JAY ZIP modelThis product is the original JAY ZIP Cushion with a 75kg maximum user weight. It is not the JAY ZIP Wheelchair Back or the newer JAY Zip+ Cushion, which have different specifications and options.
Explore more wheelchair cushions and backs, browse skin protection and positioning products or view other seating products from JAY.
Enquire Now
Original JAY ZIP Cushion Features
The original JAY ZIP combines a child-specific foam base with separate outer and inner covers for positioning, microclimatic support and everyday care.
Width-Specific Foam Firmness
The dual-layer contoured foam base combines structural support with comfort. Its firmness increases across the available cushion widths to account for different paediatric seating requirements.
Ionic+™ Outer Cover
The soft, stretchable outer cover uses silver-containing Ionic+™ fabric designed to inhibit bacterial growth. Black is standard, with pink and blue spare-cover options subject to availability.
Layered Cover Protection
The microclimatic outer cover promotes air movement, while a separate moisture-resistant inner cover helps protect the foam base.
3DX™ Spacer Fabric
Spacer fabric within the outer cover promotes air movement and helps reduce the insulating effect that some wheelchair cushion covers can create.
Moisture-Resistant Details
The inner cover includes an Aquaguard™ zip that resists moisture and anti-wicking seam thread that provides additional protection around the foam base.
The inner cover is designed to be wiped clean, while the outer cover is removable, machine washable and quick to dry.
Low-Maintenance Construction
The outer cover, inner cover and dual-layer foam base can be separated for inspection and cleaning. Orientation labels and rear-positioned zips help identify the correct direction when reassembling the cushion.
Original JAY ZIP Cushion Specifications
These specifications apply to the original JAY ZIP paediatric wheelchair cushion with a 75kg maximum user weight. They must not be replaced with specifications from the newer JAY Zip+.
| Product | Original JAY ZIP Wheelchair Cushion |
| Product Type | Paediatric skin protection and positioning cushion |
| Available Widths | 200–400mm in 20mm increments |
| Available Depths | 200–460mm in 20mm increments |
| Front Height | 50mm |
| Rear Height | 45mm |
| Maximum Cushion Height | 60mm |
| Maximum User Weight | 75kg (11.8 stone) |
| Reference Cushion Weight | 0.9kg for the 300 × 300mm size |
| Base | Dual-layer contoured foam |
| Outer Cover | Soft, stretchable Ionic+™ microclimatic cover with 3DX™ spacer fabric |
| Standard Cover Colour | Black |
| Additional Spare-Cover Colours | Pink and blue, subject to availability |
| Inner Cover | Moisture-resistant cover with Aquaguard™ zip and anti-wicking seam thread |
| Outer-Cover Washing Temperature | 60°C |
Size combinationsThe ranges above do not mean that every possible width and depth combination is available. Final sizing and configuration should be based on the current order form and clinical assessment.
Model identification: The original JAY ZIP Cushion has a 75kg capacity and widths extending to 400mm. Do not substitute specifications from the JAY ZIP Back or the newer JAY Zip+ Cushion.
Using and Caring for the JAY ZIP Cushion
Correct clinical assessment, fitting and regular inspection are essential to the performance of the original JAY ZIP Cushion. The following guidance is based on the manufacturer’s owner’s manual.
Professional assessment: Sunrise Medical recommends consulting a clinician experienced in seating and positioning to determine whether the JAY ZIP is appropriate. The cushion should be installed by an authorised Sunrise Medical supplier.
Before First Use
• Inspect all components for shipping damage and do not use the cushion if damage is found.
• Confirm that the selected width and depth have been clinically assessed for the user.
• Check the wheelchair’s stability after fitting, as adding a cushion can alter its centre of gravity.
• Make sure the seat upholstery is not excessively stretched, as this may reduce support and affect positioning.
• Always use the cushion with its cover correctly fitted and facing upwards.
Positioning the Cushion
1. Select a cushion width that matches the user’s hip width when seated.
2. Select a cushion depth that finishes approximately 25–50mm from the back of the knees.
3. Place the cushion against the back of the wheelchair seat with the identification labels and pelvic loading area towards the rear.
4. The user’s hips should sit towards the back of the wheelchair, with the sitting bones centred over the rear area of the cushion.
5. Have the footrests professionally adjusted so that the legs rest firmly but comfortably on the cushion.
Skin Monitoring
Before prolonged sitting, Sunrise Medical recommends trying the cushion for a few hours at a time while a clinician checks the skin for areas of redness.
Continue to check the skin regularly. If redness develops, stop using the cushion and seek advice from the appropriate doctor or therapist.
Pressure management: The JAY ZIP is designed to help reduce pressure and shear, but no wheelchair cushion can completely eliminate sitting pressure or prevent pressure injuries. Follow the complete skin-care and pressure-relief programme recommended by the user’s clinician.
Monthly Inspection
• Check the outer and inner covers for tears, excessive wear or other abnormalities.
• Inspect the foam base for damage or changes in consistency.
• Keep hook-and-loop fastenings away from prolonged moisture, which may weaken the adhesive.
• Do not place additional objects or materials between the user and cushion.
• Keep the cushion away from sharp objects, excessive heat and open flames.
Washing the Outer Cover
1. Remove the outer cover from the cushion and close its zip.
2. Machine wash in warm water at 60°C.
3. Drip dry or tumble dry using a low-temperature setting.
4. Do not iron, dry clean, bleach, steam-autoclave or use industrial washers and dryers.
Cleaning the Foam Base
1. Remove the covers from the foam base.
2. Wipe the foam lightly with a damp cloth.
3. Do not use soap and do not submerge the foam in water.
4. Wipe it with a clean cloth and allow it to air dry completely before reassembly.
Reassembling the Cushion
1. Make sure the foam base and covers are completely dry.
2. Insert the foam base into the moisture-resistant inner cover.
3. Insert the covered foam base into the outer cover.
4. Position both zips and the product-identification label towards the rear of the cushion.
