The Autochair Smart Lifter LP is a high-capacity car boot hoist designed to lift compatible mobility scooters and powerchairs into a vehicle. Available in 125kg, 150kg and 200kg versions, it provides powered lifting, lowering and movement into and out of the boot using a simple handheld control.
Car Boot Hoist for Heavier Mobility Equipment
The Smart Lifter LP sits at the higher-capacity end of Autochair’s car boot hoist range. It is designed for larger or heavier mobility equipment, including compatible mobility scooters and powerchairs that may be difficult or impractical to lift into a vehicle manually.
Once professionally installed, the powered hoist lifts the mobility device from outside the vehicle and moves it into the boot using the handheld controller.
125kg / 150kg / 200kg
Three lifting capacities
Approx. 60 seconds
Manufacturer-stated loading time
4-way control
Up, down, in and out
Powered Loading at the Touch of a Button
The Smart Lifter LP uses powered lifting and movement to help reduce the physical effort involved in loading a mobility device into the boot. The handset provides separate controls to raise, lower, move out and move the hoist back into the vehicle.
Autochair states that the complete lift-and-load process can take around 60 seconds once the hoist has been correctly installed and set up for the mobility device.
Designed Around Your Vehicle & Mobility Device
A Smart Lifter is not a universal fit-and-use accessory. The correct hoist, vehicle fitting kit and lifting bracket must be selected for the specific combination of vehicle and mobility device.
The weight of the complete scooter or powerchair should be considered, including fitted batteries, seating and accessories. The vehicle-specific fitting kit may also have its own safe working load that needs to be taken into account.
Compatibility matters: The Smart Lifter LP must be professionally installed and configured for the vehicle and mobility device it will lift. Please enquire with Modern Mobility so compatibility can be checked before installation.

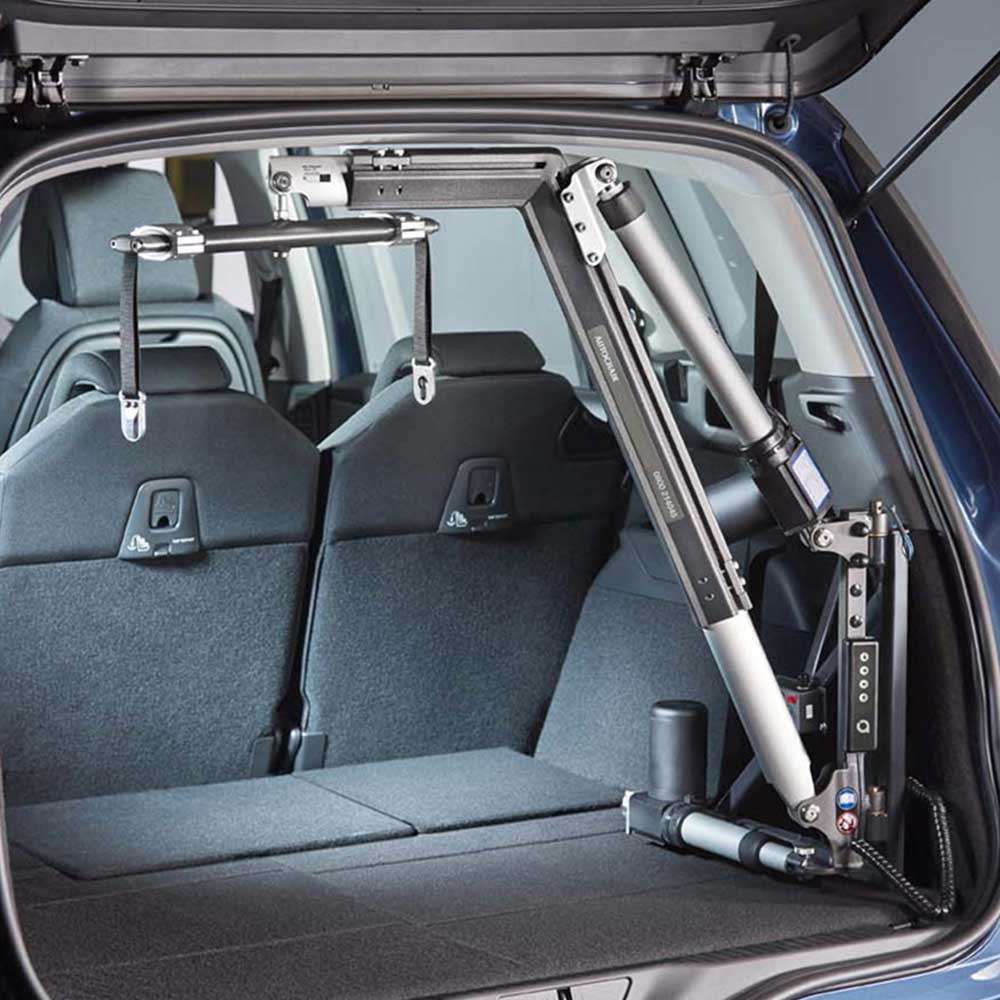

Space-Saving Vehicle Installation
The Smart Lifter is designed to stow within the vehicle boot when not in use. Autochair also designed the hoist section so it can be detached when required, helping preserve useful boot space.
The system can also potentially be transferred if you change vehicle, although a new compatibility assessment and the appropriate fitting kit may be required.
Explore Car Boot Hoists
Browse our wider range of car boot hoists or explore more vehicle adaptations from Autochair.
Smart Lifter LP Features
The Smart Lifter LP combines high lifting capacity with powered four-way operation and a vehicle-specific installation system designed for compatible heavier mobility scooters and powerchairs.
Up to 200kg Lifting Capacity
Choose from 125kg, 150kg and 200kg versions according to the mobility device and approved installation.
Four-Way Handset
Dedicated controls move the hoist up, down, into the vehicle and out of the vehicle.
Powered Operation
The hoist uses electrical power from the vehicle to perform the lifting and loading movements.
Service Indicator
The handset includes a service-warning light to indicate when the hoist should be checked by the installer.
Overcurrent Protection
Built-in protection temporarily cuts power if the system detects excessive current, such as when an obstruction is encountered or the load is too high.
Automatic Shut-Down
The control system switches itself off after approximately five minutes without handset operation.
Smart Lifter LP in Detail
A closer look at some of the key practical features of the Autochair Smart Lifter range.
Simple Four-Button Control
Dedicated controls allow the hoist to move up, down, into the vehicle and out of the vehicle.

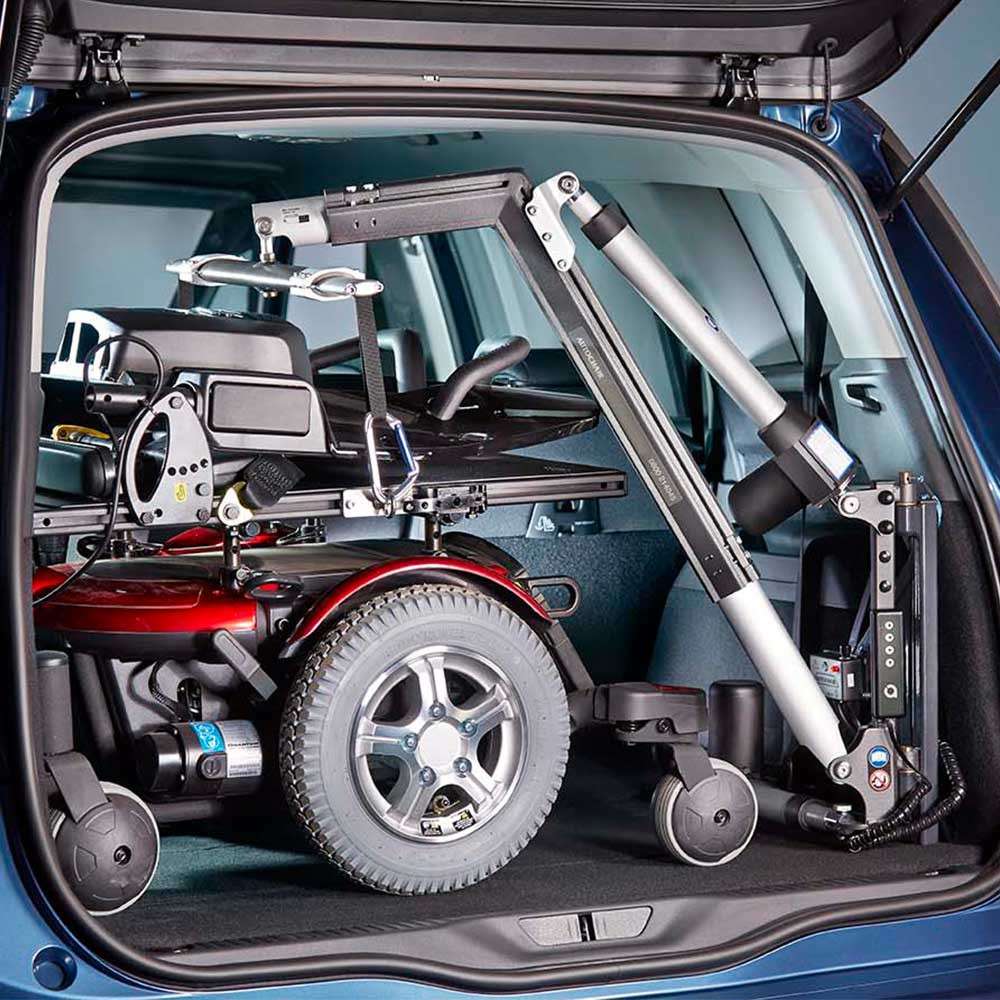

High-Capacity Lifting
The LP range includes 125kg, 150kg and 200kg versions for compatible heavier mobility equipment.

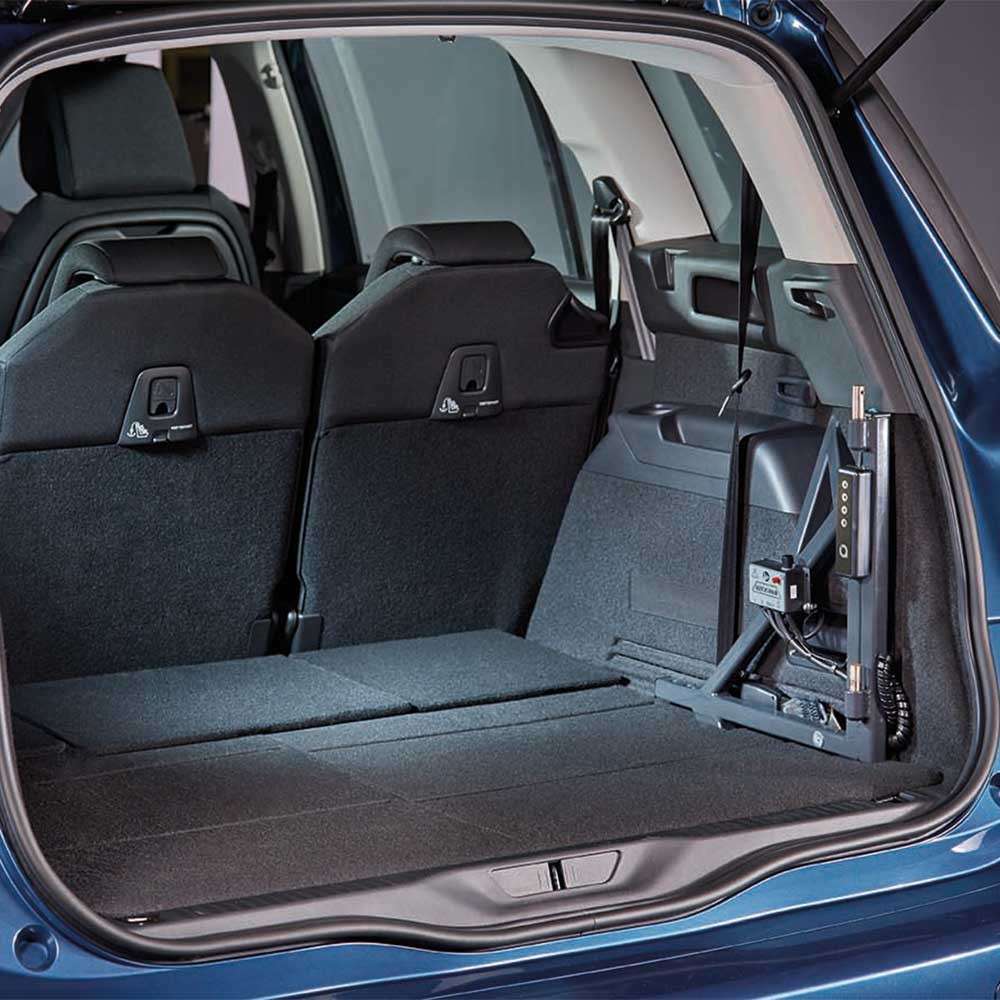

Designed to Preserve Boot Space
The Smart Lifter stows inside the vehicle when not in use and the hoist section can be detached when required.
Choose Your Smart Lifter LP
The Smart Lifter LP is offered in three main lifting capacities for heavier mobility scooters and powerchairs. The correct version depends on the complete weight of the mobility device and the approved vehicle installation.
Smart Lifter LP125
Up to 125kg
High-capacity option for compatible mobility devices with a complete lifting weight within the approved 125kg installation limit.
Smart Lifter LP150
Up to 150kg
Provides additional capacity for heavier compatible scooters and powerchairs where the approved installation supports up to 150kg.
Smart Lifter LP200
Up to 200kg
The highest-capacity LP option, designed for particularly heavy compatible mobility equipment where a 200kg installation is approved.
Do not select a hoist from weight alone: The mobility device, lifting bracket, vehicle and vehicle-specific fitting kit must all be suitable for the required safe working load.
Need a Lower-Capacity Hoist?
For lighter mobility equipment, the Autochair Smart Lifter LC offers 80kg and 100kg lifting options.
Using and Caring for the Smart Lifter LP
The Smart Lifter LP should be installed and initially demonstrated by an accredited installer. Familiarise yourself with the controls and the lifting process before loading your mobility device.
Before Each Use
1. Park the vehicle on flat, level ground and apply the handbrake.
2. Inspect the lifting straps, buckles and fasteners for twisting, fraying, damage or excessive wear.
3. Check the Smart Lifter and electrical connections for visible damage or excessive wear.
4. Confirm that the mobility device is the one the Smart Lifter has been installed and configured to lift.
5. Make sure the mobility device does not exceed the approved lifting capacity of the hoist and installation.
Important: Never use worn or damaged lifting straps and never exceed the approved lifting capacity. If your scooter or powerchair is changed or modified, compatibility should be checked again before using the hoist.
Loading a Mobility Device
1. Switch the Smart Lifter on and use the OUT control to move the hoist fully out of the vehicle.
2. Use the DOWN control to lower the spreader bar towards the mobility device.
3. Connect the spreader bar securely to all of the approved lifting points on the mobility device.
4. Use the UP control to raise the mobility device and check that it is level.
5. Carefully guide the mobility device while using the IN control to move it into the boot.
6. Use the DOWN control to lower the mobility device until it is securely positioned on the boot floor.
7. Switch the Smart Lifter off once loading is complete.
During lifting: Keep hands and fingers away from moving components and pinch points. Never position any part of your body underneath a raised mobility device.
Unloading
The unloading process reverses the loading sequence. Raise the mobility device clear of the boot floor, move it carefully out of the vehicle, rotate and position it as required, then lower it fully to the ground before disconnecting the lifting points.
Make sure there is slack in the lifting system before detaching the spreader bar from the mobility device.
Using the Handset
UP raises the Smart Lifter arm, while DOWN lowers it.
OUT moves the hoist towards the outside of the vehicle, while IN returns it towards the boot.
Release a control button when the required position has been reached. Do not continue operating the lowering control once the spreader bar or mobility device has reached its intended position.
Daily Checks
• Inspect straps, buckles and fasteners for wear or damage.
• Inspect the Smart Lifter itself for damage or excessive wear.
• Check electrical cables and connections for damage or wear.
Periodic Maintenance
Autochair recommends that mounting hardware and lifting pivots are inspected at least every six months for damage, defects and secure fitting.
The manufacturer also recommends an annual service by Autochair or an accredited dealer.
Cleaning
Disconnect the Smart Lifter from power before cleaning. Use a damp cloth and detergent when required.
Do not immerse the hoist in water or allow water to enter the electrical connectors or control box. Allow the unit to dry fully before using it again.
Never lift someone while they are sitting on the scooter, wheelchair or powerchair. The Smart Lifter is designed to lift the mobility device only.
