Lightweight Lithium Mobility for Easier Travel
The Drive AstroLite is a lightweight car boot mobility scooter designed for easier travel. It dismantles in seconds, with the heaviest section weighing just 9.9kg, while all-round suspension provides a smooth and comfortable ride.
- 10.3Ah battery: Airline-friendly with up to 6.8 miles of range.
- 17.2Ah battery: Extended range of up to 11.4 miles.
Drive AstroLite Features
The AstroLite combines lightweight lithium power with a practical split-frame design, making it a strong option for users who want a comfortable scooter that can be transported in a car boot.
- Lightweight dismantling car boot mobility scooter
- Separates into five sections without tools
- Heaviest section weighs just 9.9kg
- Choice of 10.3Ah or 17.2Ah removable lithium-ion battery
- Up to 6.8 miles of range with the 10.3Ah battery*
- Up to 11.4 miles of range with the 17.2Ah battery*
- 10.3Ah MS027 battery classified for air transport under IATA Special Provision A67
- Front and rear suspension for improved ride comfort
- Comfortable padded seat and backrest
- Removable 360° swivel seat for easier transfers
- Flip-up, width-adjustable and removable armrests
- Angle-adjustable tiller
- Compact 49.5cm overall width
- 125cm turning radius for manoeuvring in tighter spaces
- Solid puncture-proof PU tyres
- Automatic electromagnetic braking
- Rear anti-tip wheels
- Removable front basket with a maximum 3kg load
- Front impact bar that also acts as a lifting handle
- Rear lifting handle for easier positioning
- On-board and off-board battery charging
- Available in black or blue
*Maximum range is based on manufacturer test conditions. Actual range varies depending on user weight, terrain, gradients, battery condition, temperature, weather and driving behaviour.

| Type | Dismantling Car Boot Mobility Scooter |
| Class | Class 2 |
| Maximum Speed | 6.4km/h / 4mph |
| Maximum Range – 10.3Ah Battery* | Up to 11km / 6.8 miles |
| Maximum Range – 17.2Ah Battery* | Up to 18.4km / 11.4 miles |
| Battery Options | 10.3Ah or 17.2Ah lithium-ion |
| Battery Weight | 10.3Ah: 2kg / 17.2Ah: 2.64kg |
| Maximum User Weight | 120kg / 18.9 stone |
| Scooter Weight Without Battery | 27.6kg |
| Total Weight With Battery | 10.3Ah: 29.6kg / 17.2Ah: 30.2kg |
| Carry Weight | 19.48kg |
| Heaviest Section | Front section: 9.9kg with seat post removed |
| Motor | 24V / 270W |
| Maximum Rated Slope | 6° |
| Ground Clearance | 5cm / 2″ |
| Turning Radius | 125cm / 1.25m |
| Tyres | Solid puncture-proof PU |
| Braking System | Automatic electromagnetic brake |

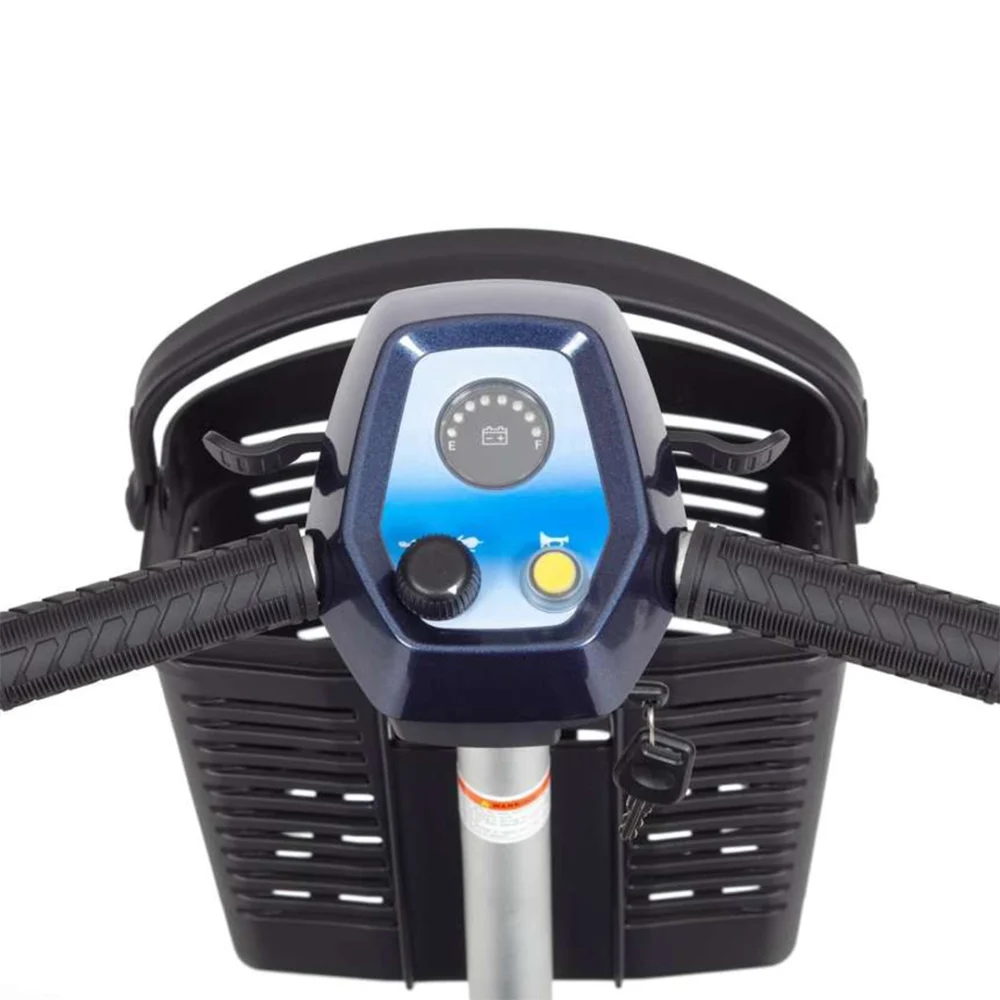

| Controls | Analogue display with adjustable speed control |
*Maximum range was measured by the manufacturer at an ambient temperature of 20°C with a 100kg user, a new fully charged battery and constant driving at approximately 6km/h. Actual performance varies according to user weight, terrain, gradients, battery condition, weather and driving behaviour.
| Overall Length | 109cm / 42.9″ |
| Overall Width | 49.5cm / 19.5″ |
| Overall Height | 90cm / 35.4″ |
| Seat Width | 40cm / 15.7″ |
| Seat Depth | 35cm / 13.8″ |
| Front Section | 89 × 42 × 37.5cm / 35 × 16.5 × 14.8″ |
| Rear Section | 49.5 × 31 × 26cm / 19.5 × 12.2 × 10.4″ |
| Front Wheel Size | 18.5 × 5cm / 7.3 × 2″ |
| Rear Wheel Size | 18.5 × 5cm / 7.3 × 2″ |
| Minimum Turning Radius | 125cm / 49″ |
Your Drive AstroLite Mobility Scooter includes the components needed to assemble, charge and use your chosen model:
- Drive AstroLite scooter in your selected colour
- Your selected 10.3Ah or 17.2Ah lithium-ion battery
- Approved lithium battery charger
- Removable padded swivel seat and backrest
- Removable, width-adjustable armrests
- Removable front shopping basket
- Seat post and securing components
- Drive AstroLite user manual
The battery can be charged while fitted to the scooter or removed for convenient off-board charging.
The Drive AstroLite is best suited to users who want a lightweight lithium mobility scooter that can be separated into manageable sections for car boot transport.
It may be a good choice if you want:
- A compact 4mph scooter for shops, days out and everyday pavement journeys
- A scooter that dismantles without tools rather than folding as one complete unit
- A heaviest individual section weighing less than 10kg
- A removable lithium battery that can be charged away from the scooter
- A choice between a lighter airline-friendly battery and a longer-range battery
- Front and rear suspension for added comfort
- A swivel seat and flip-up armrests to make transfers easier
- A scooter suitable for users weighing up to 18.9 stone
The AstroLite may not be the best choice if you:
- Need an 8mph Class 3 scooter for regular road travel
- Frequently travel across grass, gravel, sand or rough terrain
- Need more than 11.4 miles of maximum range
- Cannot safely lift its 9.9kg heaviest section
- Require a user weight capacity above 120kg / 18.9 stone
The AstroLite is intended for flat, even paths and appropriate indoor and outdoor environments. Grass, gravel, loose surfaces, motorised roads and gradients above 6° should be avoided.
If you are comparing portable models, explore Modern Mobility’s wider ranges of lithium mobility scooters and car boot scooters.

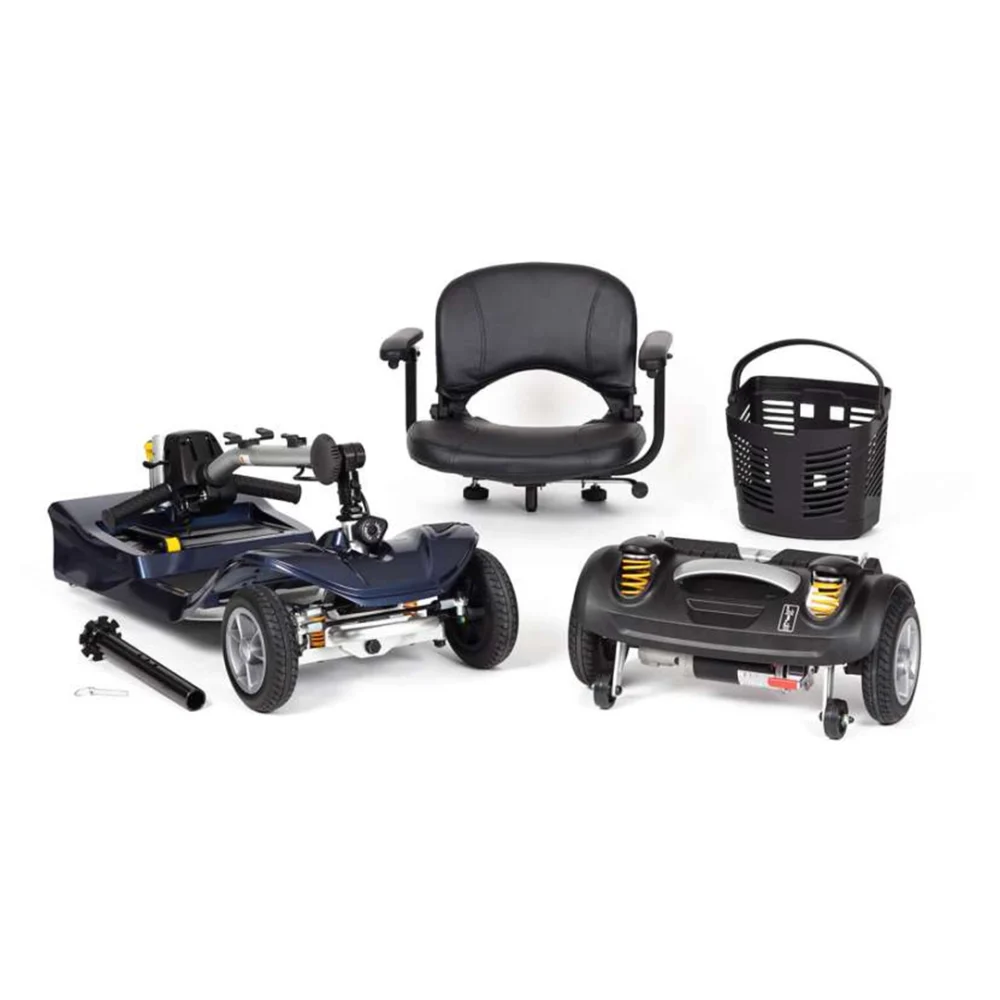

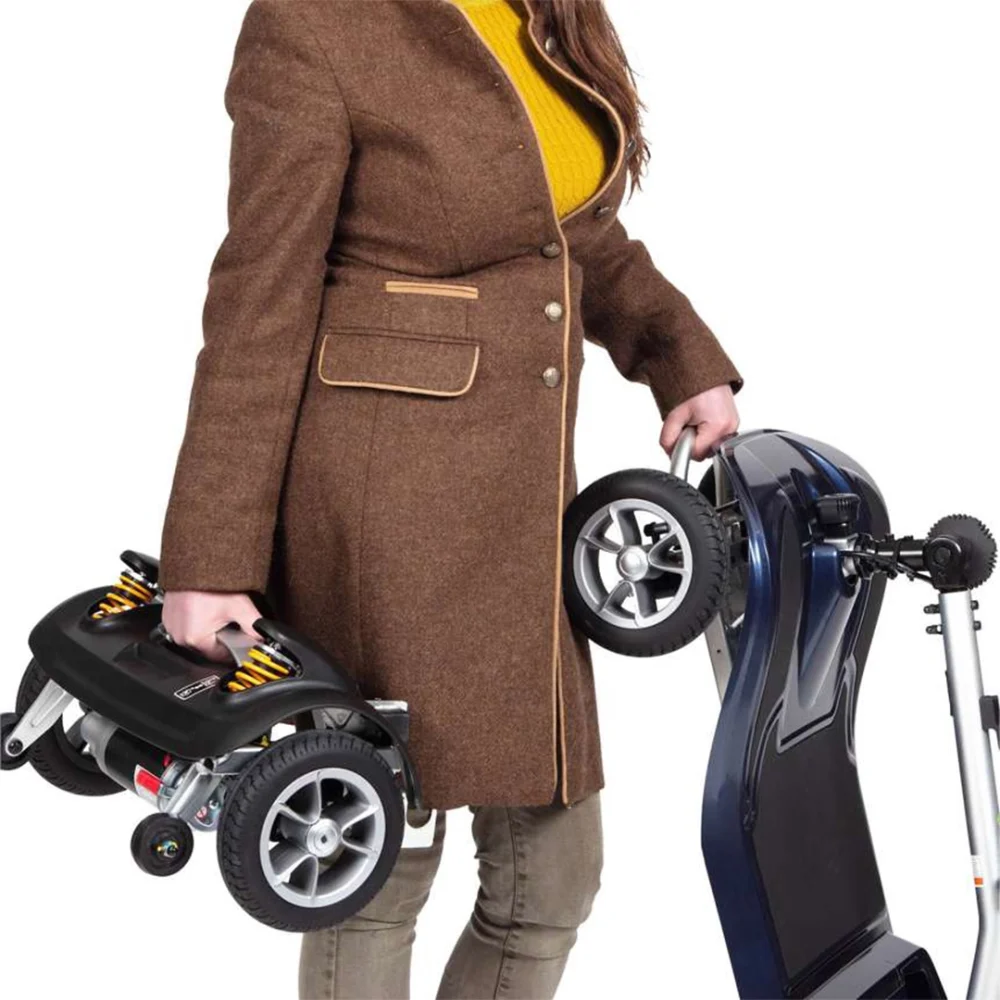

The AstroLite is specifically designed for easier car boot transport. It can be dismantled into five main sections without tools: the seat, seat post, front section, rear section and lithium battery pack.
The approximate component weights are:
- Front section with seat post removed: 9.9kg
- Rear section: 8.8kg
- Seat: 7.4kg
- 10.3Ah battery: 2kg
- 17.2Ah battery: 2.64kg
- Seat post: 0.85kg
- Front basket: 0.6kg
Before lifting or dismantling the scooter, switch it off, place the freewheel lever in the drive position and remove the battery. Ask for assistance if any section cannot be lifted safely.
When transporting the AstroLite in a vehicle, all sections should be securely stowed in the boot or rear storage area. The scooter must not be occupied or used as a seat while travelling in a moving vehicle.
Air Travel
The standard 10.3Ah battery supplied with the MS027 AstroLite is classified as safe for air transport under IATA Special Provision A67. However, airlines apply their own battery and mobility equipment policies, so you must contact the airline before travelling and obtain approval for the scooter and battery.
The larger 17.2Ah battery should not be assumed to be airline-friendly. Check directly with the carrier before making travel arrangements.
Storage
Store the scooter upright in a clean, dry location and protect it from moisture, excessive heat and direct sunlight. For prolonged storage, fully charge and remove the battery. Drive recommends charging the battery every week during storage to help preserve its condition.
Drive AstroLite Mobility Scooter FAQs
Below are answers to common questions about the Drive AstroLite’s lithium batteries, range, weight, transport options and suitability for everyday use.
Yes. The Drive AstroLite uses a removable lithium-ion battery and is available with either a 10.3Ah or 17.2Ah battery. Both batteries can be charged while fitted to the scooter or removed for off-board charging.
The 10.3Ah AstroLite has a manufacturer-stated maximum range of up to 6.8 miles. The larger 17.2Ah battery increases the maximum range to approximately 11.4 miles. Actual range varies depending on user weight, terrain, gradients, battery condition, weather and driving behaviour.
The AstroLite weighs 27.6kg without its battery. Total weight is approximately 29.6kg with the 10.3Ah battery or 30.2kg with the 17.2Ah battery. However, the scooter dismantles into separate sections, with the heaviest section weighing 9.9kg.
No. The AstroLite is a dismantling mobility scooter rather than a folding scooter. It separates into five main sections without tools: the seat, seat post, front section, rear section and battery pack.
The AstroLite is designed specifically for car boot transport. Its frame separates into compact front and rear sections, while the seat, seat post, basket and battery can also be removed. Car boot dimensions vary, so measure the available space before purchasing.
The 10.3Ah battery supplied with the MS027 AstroLite is classified as safe for air transport under IATA Special Provision A67. You must still contact the airline before travelling because each carrier has its own approval and handling requirements. The 17.2Ah battery should not be described as airline-friendly without confirmation from the carrier.
Yes. The AstroLite has front and rear suspension designed to improve comfort over appropriate indoor surfaces and flat, even outdoor paths. It is not intended for grass, gravel, sand or rough off-road terrain.
The Drive AstroLite has a maximum user weight capacity of 120kg, equivalent to approximately 18.9 stone. This limit includes the user and the weight of any accessories or additional items carried on the scooter.
The AstroLite is a Class 2 mobility scooter with a maximum speed of 4mph. It is designed primarily for pavements and appropriate indoor and outdoor areas rather than regular road use.
Yes. The removable lithium battery can be charged either while installed in the AstroLite or separately from the scooter. Only the approved charger supplied for the AstroLite should be used.
