Drive Folding Walking Frame
The Drive Folding Walking Frame is a lightweight, height-adjustable mobility aid designed to provide additional support when walking. It is available with front wheels or without wheels, allowing the configuration to be matched more closely to the user’s needs.
Its aluminium frame combines a substantial 180kg maximum user weight with a practical folding mechanism for storage and transportation. Independently operating sides can help when moving through narrower spaces, while the U-shaped design provides additional clearance so the user can stand closer to the frame.
Folding Design
The frame folds to make storage and transportation more convenient when it is not being used.
Adjustable Height
Push-button adjustment provides a handle-height range of approximately 81–99cm.
Independent Sides
Each side can operate independently to assist with positioning through narrower spaces and provide stability while standing.
Comfortable Handgrips
Contoured vinyl handgrips provide comfortable and clearly defined holding positions on both sides of the frame.
With Wheels or Without Wheels?

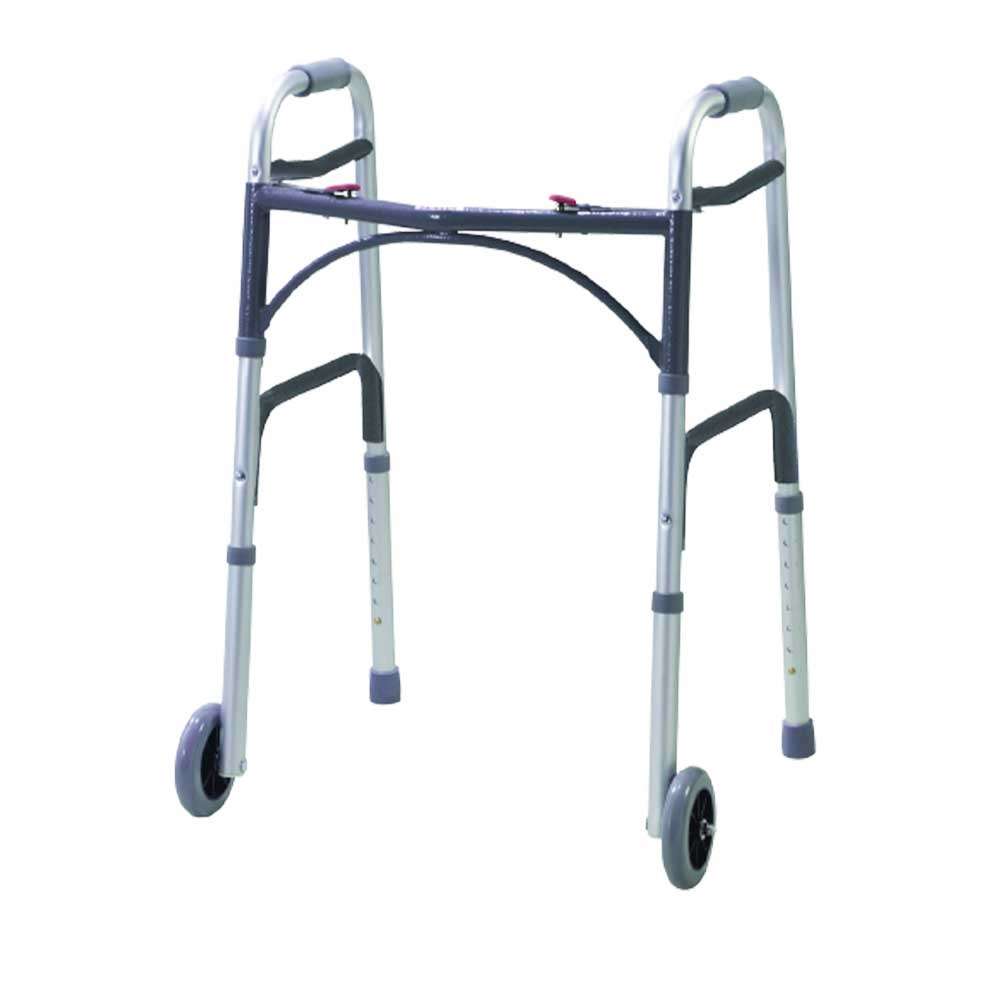

With Front Wheels — WA009
The wheeled version uses wheels on the two front legs and ferrules on the rear legs. It may suit users who find repeatedly lifting a fully ferruled frame difficult.
Size: 62cm wide × 46cm deep
Weight: 3.4kg

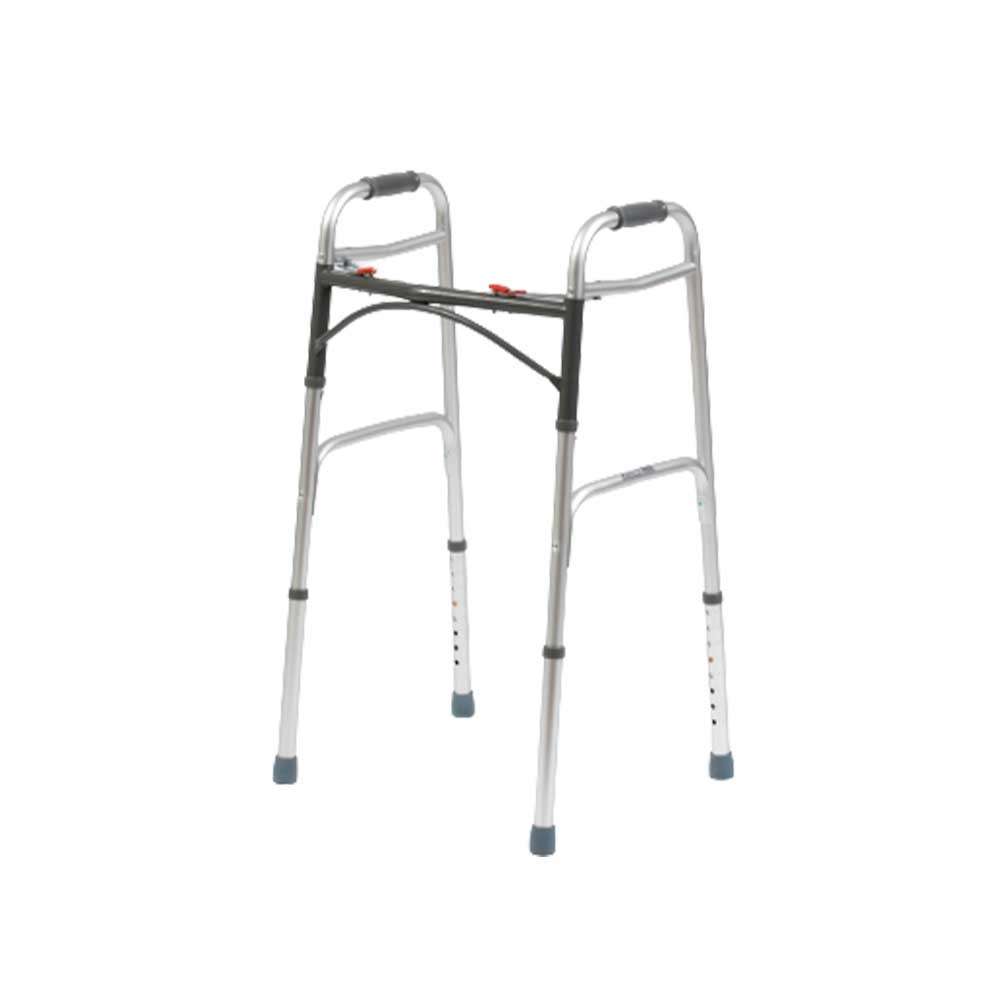

Without Wheels — WA008
The unwheeled version has ferrules on all four legs and is placed forward as the user moves. It is narrower, shallower and slightly lighter than the wheeled model.
Size: 55cm wide × 42cm deep
Weight: 2.9kg
Which version should I choose? The most suitable configuration depends on the user’s strength, balance, walking pattern and intended environment. Seek advice from an occupational therapist, physiotherapist or another appropriate professional if you are unsure.
Key Features
• Drive DeVilbiss folding walking frame.
• Available with front wheels or without wheels.
• Folding mechanism for easier storage and transportation.
• Lightweight anodised aluminium construction.
• Height adjustable from approximately 81 to 99cm.
• Easy-to-operate push-button mechanisms.
• Independently operating sides.
• U-shaped frame for additional clearance.
• Contoured vinyl handgrips.
• Maximum user weight of 180kg.
Explore more walking frames, including lightweight, narrow and wheeled options.
Product Specifications
The wheeled and unwheeled frames share the same adjustment range and maximum user weight, but their dimensions and product weights differ.
| Specification |
With Front Wheels |
Without Wheels |
| Manufacturer |
Drive DeVilbiss |
Drive DeVilbiss |
| Product code |
WA009 |
WA008 |
| Height |
81–99cm |
81–99cm |
| Width |
62cm |
55cm |
| Depth |
46cm |
42cm |
| Product weight |
3.4kg |
2.9kg |
| Maximum user weight |
180kg / 28.3 stone |
180kg / 28.3 stone |
| Front legs |
Wheels |
Non-slip ferrules |
| Rear legs |
Non-slip ferrules |
Non-slip ferrules |
| Frame construction |
Anodised aluminium |
Anodised aluminium |
| Folding frame |
Yes |
Yes |
Measure before ordering: The wheeled frame is 7cm wider and 4cm deeper than the unwheeled model. Check doorways, furniture gaps and the intended storage space before selecting an option.
Using the Folding Walking Frame
The frame should be correctly adjusted for the individual user and fully opened before use. Professional assessment is recommended where there is any uncertainty about the appropriate frame or walking technique.
Open the Frame Fully
Open both sides into their working positions and check that the frame is secure before placing weight through the handgrips.
Adjust All Four Legs
Set every leg to the same appropriate height and ensure each adjustment button has fully engaged.
Inspect the Contact Points
Check the wheels and ferrules fitted to the selected model for wear, damage or contamination before use.
Check the Route
Make sure there is sufficient width and that the intended surface is firm, level and free from avoidable obstacles.
Before Each Use
• Check that both sides of the frame are completely open.
• Confirm that all four legs are set to the correct matching height.
• Inspect the frame for loose, bent or damaged components.
• Check that ferrules have adequate tread and remain securely attached.
• On the wheeled version, check that both front wheels move freely and are undamaged.
• Do not exceed the stated 180kg maximum user weight.
Folding and Storage
Fold the frame using its push-button mechanisms only when it is no longer supporting the user. Store it in a dry location where it will not create a trip hazard or be exposed to avoidable damage.
Important: Do not use the walking frame on stairs or escalators. Stop using it if the frame, wheels, adjustment buttons, handgrips or ferrules become damaged or insecure.
Frequently Asked Questions
Find answers about the two frame options, measurements, adjustment and everyday use.
Does this folding walking frame have wheels?
You can select either a frame with two front wheels or an unwheeled frame with ferrules on all four legs.
What is the difference between the two options?
The WA009 has front wheels and measures 62cm wide by 46cm deep. The WA008 has no wheels, measures 55cm wide by 42cm deep and is 0.5kg lighter.
How high does the walking frame adjust?
Both versions can be adjusted from approximately 81 to 99cm. All four legs must be set evenly, with every adjustment button fully engaged.
Does the walking frame fold?
Yes. Both sides fold to make the frame easier to store and transport when it is not being used.
What is the maximum user weight?
Both models have a stated maximum user weight of 180kg, equivalent to approximately 28.3 stone.
Can the frame be used outdoors?
The frame is intended for indoor and outdoor use, but suitability depends on the surface, conditions and individual user. Uneven, loose or slippery ground may not be appropriate.
Is this the same as a rollator?
No. Even the wheeled version only has wheels at the front and does not have the four wheels, hand-operated brakes or seat commonly found on a rollator.
