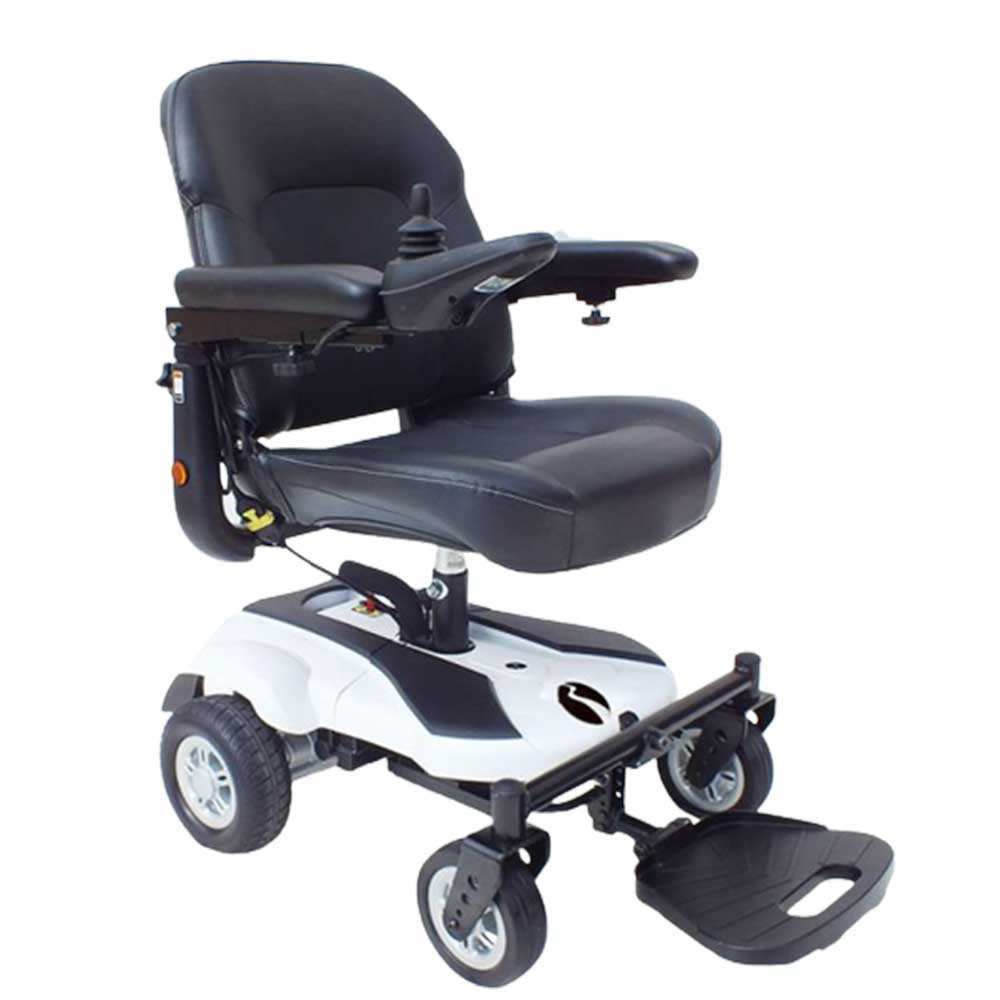

Compact Powerchair with a Dismantling Frame
The Rascal Rio is a compact rear-wheel-drive powerchair for moving around the home and travelling on suitable paved routes. Its seat and chassis separate for car transport, while adjustable seating and joystick positioning help achieve a comfortable driving setup.
- Practical transport: load the seat and front and rear sections individually.
- Adjustable comfort: a padded folding backrest, adjustable armrests and a flip-up footplate.
- Everyday convenience: solid tyres and a charging port on the joystick controller.
Compare our electric wheelchairs and powerchairs or ask Modern Mobility to demonstrate the Rio’s controls, seating and component loading.
Rascal Rio Features
- Compact rear-wheel-drive powerchair with a maximum speed of 4mph
- Seat and front and rear chassis sections separate for transport
- Padded seat with a folding backrest
- Flip-up armrests with height, angle and width adjustment
- Adjustable seat height and joystick position
- Flip-up footplate for a more compact stored position
- Solid, puncture-proof tyres all round
- Charging port on the joystick controller
- Two 12V 14Ah batteries
- Maximum user weight of 113kg / approximately 17 stone 11lb

Rascal Rio Specification
The figures below follow Electric Mobility’s current published Rio technical information. Older brochures list different range and component weights; confirm the supplied chair’s specification during your demonstration.
| Manufacturer / Model | Electric Mobility / Rascal Rio |
| Drive / Classification | Rear-wheel drive / EN 12184 Class B, UK Class 2 |
| Maximum Speed | 4mph / 6.4km/h |
| Maximum User Weight | 113kg / approximately 17 stone 11lb |
| Batteries | 2 × 12V 14Ah |
| Charging Connection | Joystick controller charging port |
| Tyres | Solid, puncture-proof |
| Front Castors / Rear Drive Wheels | Approximately 150mm / 200mm |
| Ground Clearance | 23mm |
| Maximum Obstacle Height | 25mm |
| Maximum Safe Slope | 6° |
| Colour | White |
Manufacturer-Tested Range
| At 113kg User Weight | Up to 11km / 6.8 miles |
| At 90kg User Weight | Up to 13.8km / 8.6 miles |
| At 68kg User Weight | Up to 15.4km / 9.5 miles |
| At 44kg User Weight | Up to 16.8km / 10.5 miles |
These theoretical range figures are based on a full charge and flat ground. Actual distance depends on user weight, route, gradients, temperature, battery condition and driving. Ground clearance and obstacle capability are different measurements; use suitable dropped kerbs and follow the supplied operating instructions.
Dimensions & Component Weights
Check your access and vehicle against the complete chair and the sections you will actually lift.
| Assembled Length × Width × Height | 880 × 550 × 900mm |
| Seatback & Footrest Folded | 685 × 550 × 800mm; the frame remains assembled |
| Seat Width × Depth | 457 × 432mm |
| Floor-to-Seat Height | 508–558mm |
| Turning Radius | 800mm |
| Turn-Around Width | 1,060mm |
| Total Weight including 14Ah Batteries | 46.5kg |
| Rear Section | 14.9kg |
| Front Section with Batteries | 19.3kg |
| Front Section without Batteries | 10.5kg |
| Seat including Joystick & Bracket | 12.3kg |
Check the front section as well as the rear. The 14.9kg rear-section figure is not a maximum for every load. The front section weighs 19.3kg with its batteries fitted. Ask the team to demonstrate the loading arrangement and any battery-removal procedure approved for your chair.
Is the Rascal Rio Right for You?
The Rio suits someone looking for compact everyday mobility with the option to separate the chair for transport. Check the driving fit and the loading routine together.
Compare how you will transport it. Explore our standard powerchairs or compare folding powerchairs if you prefer a folding frame to separate chassis sections.

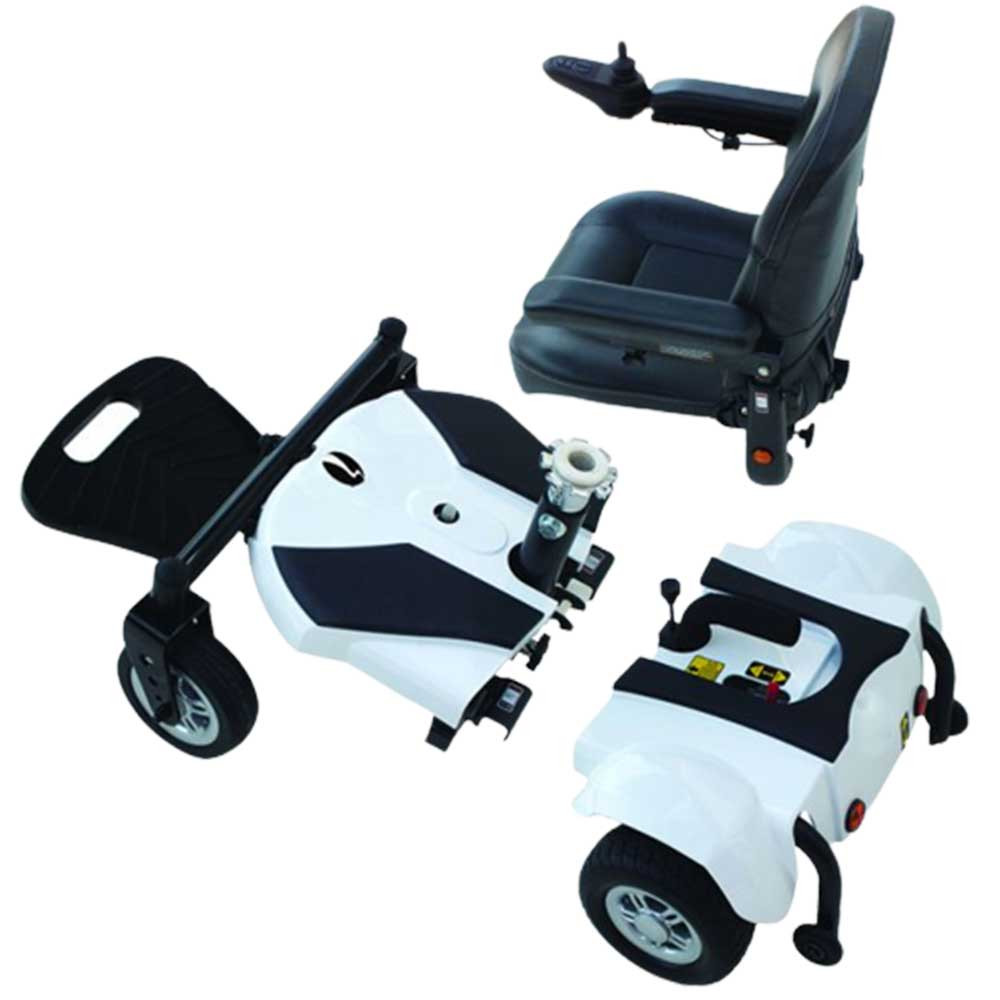

Dismantling, Charging & Storage
The Rio’s seat and front and rear chassis sections separate for vehicle loading. Plan each lift around the equipment that remains attached.
Try the Loading Routine
Ask for a dismantling and reassembly demonstration. The front section with batteries fitted weighs 19.3kg, the rear section 14.9kg and the seat 12.3kg. Discuss help or suitable loading equipment if needed.
Check Your Vehicle
Measure the boot opening, loading height and usable space inside. The seatback and footplate fold for a smaller stored position, but the Rio is not a one-piece folding-frame powerchair.
Charge & Store Dry
Use the compatible charger and follow the instructions for the supplied batteries. The joystick has a charging port. Choose a dry, secure storage space with access to a socket and room to approach the chair.
Travelling in a Vehicle
Plan to transfer to a suitable vehicle seat and secure the Rio unoccupied. If you need to travel while seated in a wheelchair, discuss a chair, seating and restraint arrangement specifically approved for that purpose with Modern Mobility.
Before ordering: confirm the chair’s fit, each component lift, charger and operating instructions. Compare our rear-wheel-drive powerchairs if you need a different seating or transport arrangement.
Rascal Rio Documents
Use the manufacturer’s documents to compare the chair’s dimensions, component weights and equipment.
The technical sheet explains how range changes with user weight and lists the front section with and without batteries. Ask Modern Mobility for the full owner’s manual that matches your supplied chair and controller before use.
Rascal Rio FAQs
Answers about the Rio’s dismantling design, batteries, lifting weights and everyday use.
The Rio’s seat and front and rear chassis sections separate for transport. Its seatback and footplate also fold to reduce the stored size, but the complete chair does not fold as one compact frame.
Current technical information lists 46.5kg including batteries. The rear section is 14.9kg and the seat is 12.3kg. The front section weighs 19.3kg with batteries or 10.5kg without them, so check the loading routine rather than treating 14.9kg as the maximum lift.
The manufacturer’s theoretical figures range from up to 6.8 miles at a 113kg user weight to up to 10.5 miles at 44kg. It quotes up to 8.6 miles at 90kg. These tests use a full charge and flat ground; actual conditions and battery condition affect range.
The published specification lists two 12V 14Ah batteries. The joystick controller has a charging port. Use the compatible charger and follow the charging instructions supplied with your chair.
The Rascal Rio’s maximum carrying capacity is 113kg, approximately 17 stone 11lb. Seating fit, control reach and your usual routes should also be checked during a demonstration.
Yes. The Rio has adjustable seat height and joystick positioning, with flip-up armrests that adjust for height, angle and width. Its padded backrest folds, and the footplate flips up.
The Rio is a Class 2 powerchair for indoor use and suitable paved pedestrian routes. Its ground clearance is 23mm and its maximum safe slope is 6°. Discuss your usual surfaces and access with the team; it is not designed for demanding off-road use.
It can be transported in a suitable vehicle once separated into sections. Check the boot opening, loading height and available space, then try the component lifts during a demonstration. Car-boot fit should not be assumed from the assembled dimensions alone.
Plan to use a suitable vehicle seat and secure the Rio unoccupied. If occupied wheelchair transport is essential, ask Modern Mobility about a specifically approved chair, seating and restraint arrangement.
Ask Modern Mobility to arrange a demonstration and discuss a home assessment. Check the seat, controls, doorways, charging and vehicle loading, then request a quote listing the equipment included in your chosen setup.
Cushions & Backs
Explore wheelchair cushions and backs when discussing comfort and support. Ask the team to check seat dimensions, posture and compatibility with the Rio before choosing an additional cushion or back support.
