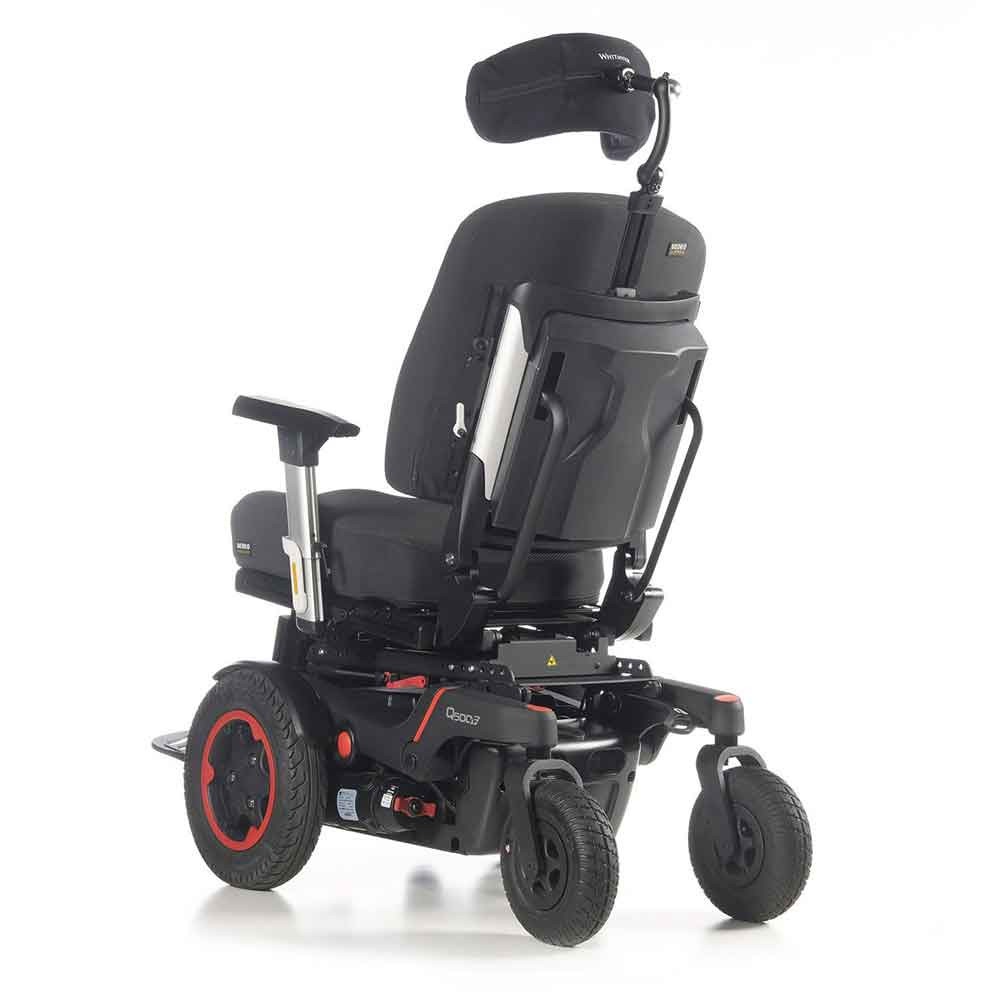

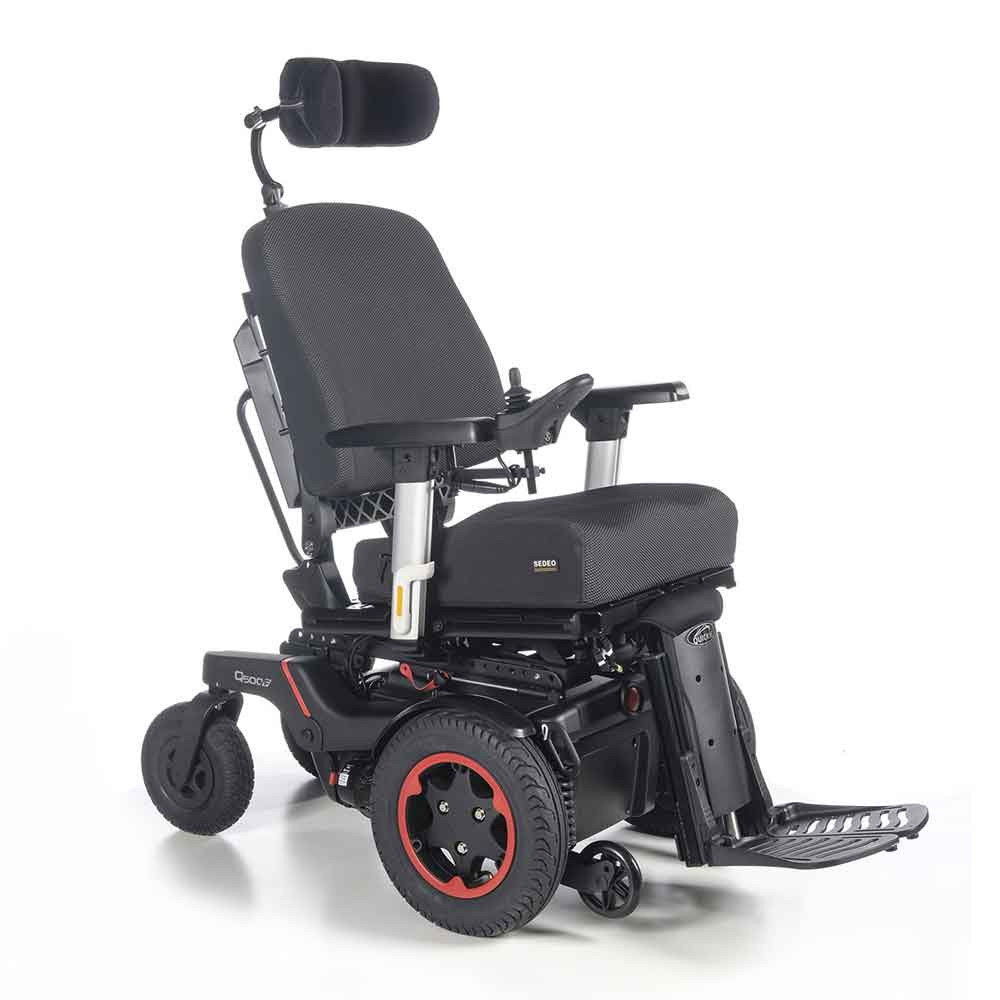

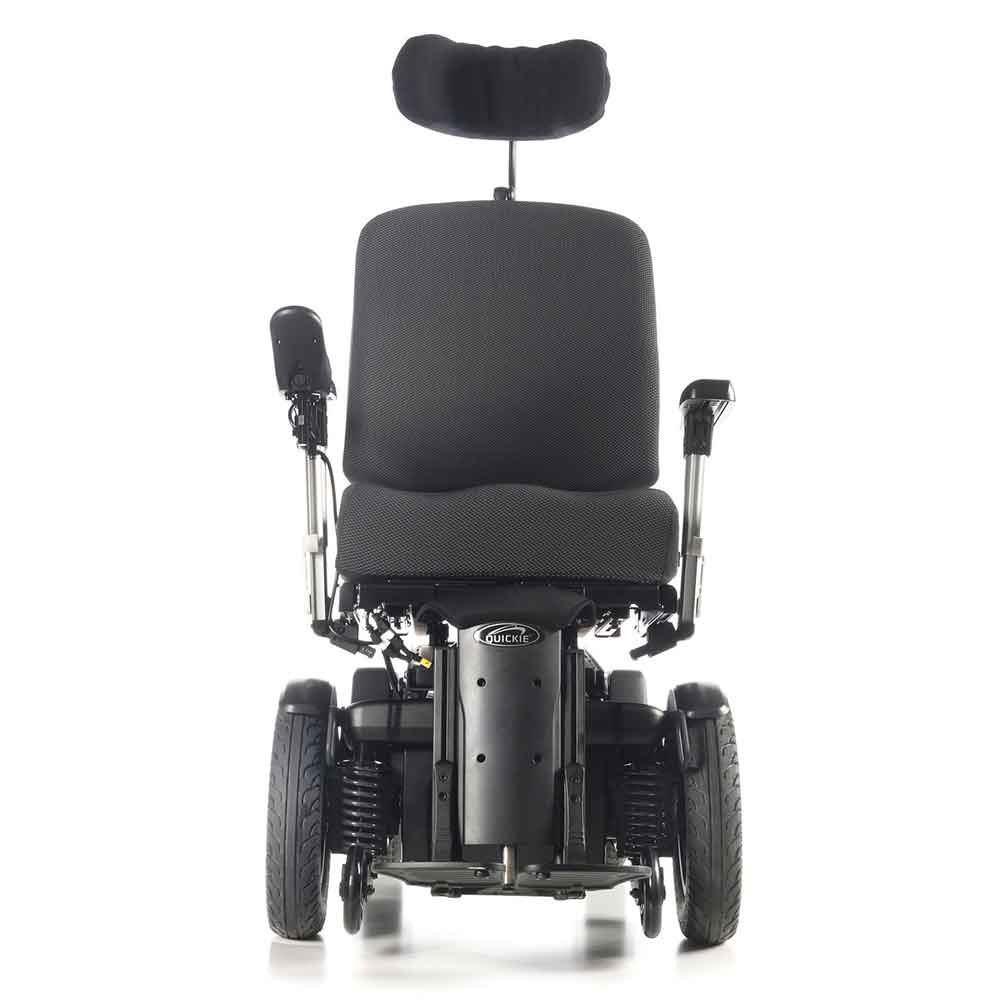

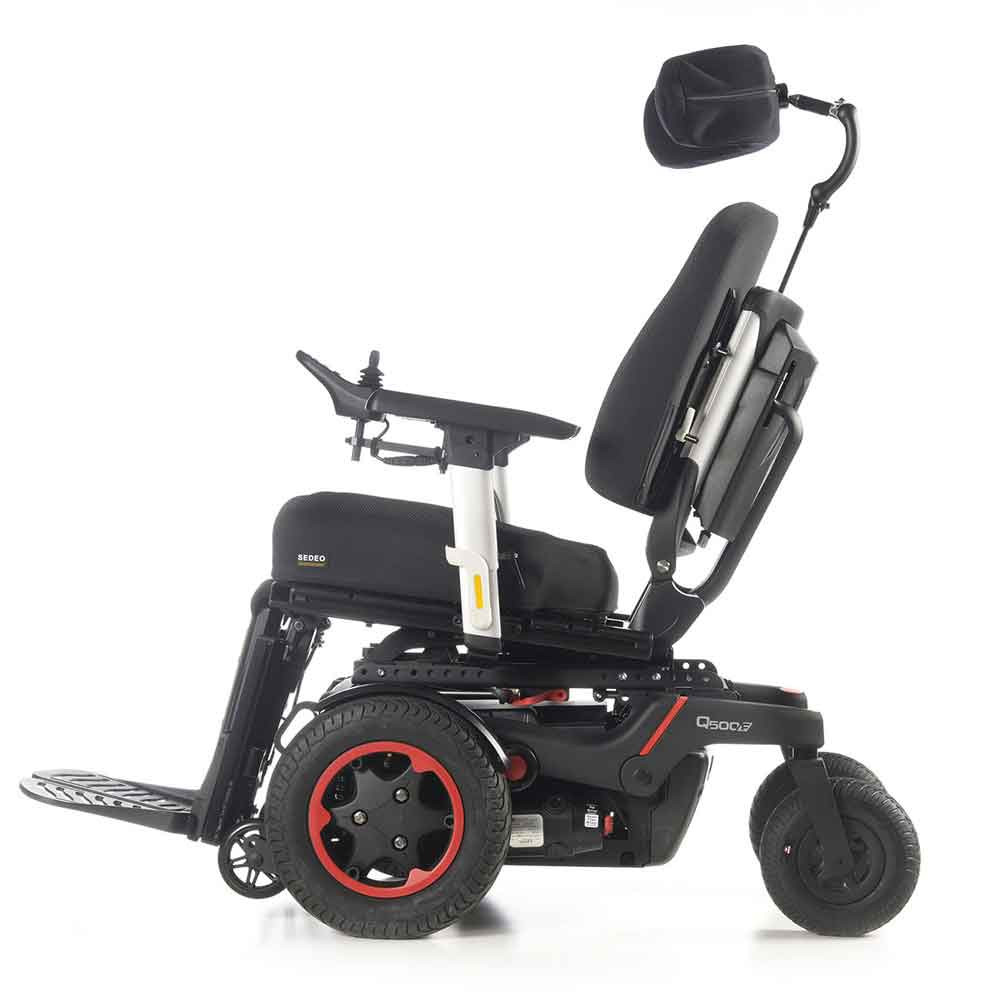

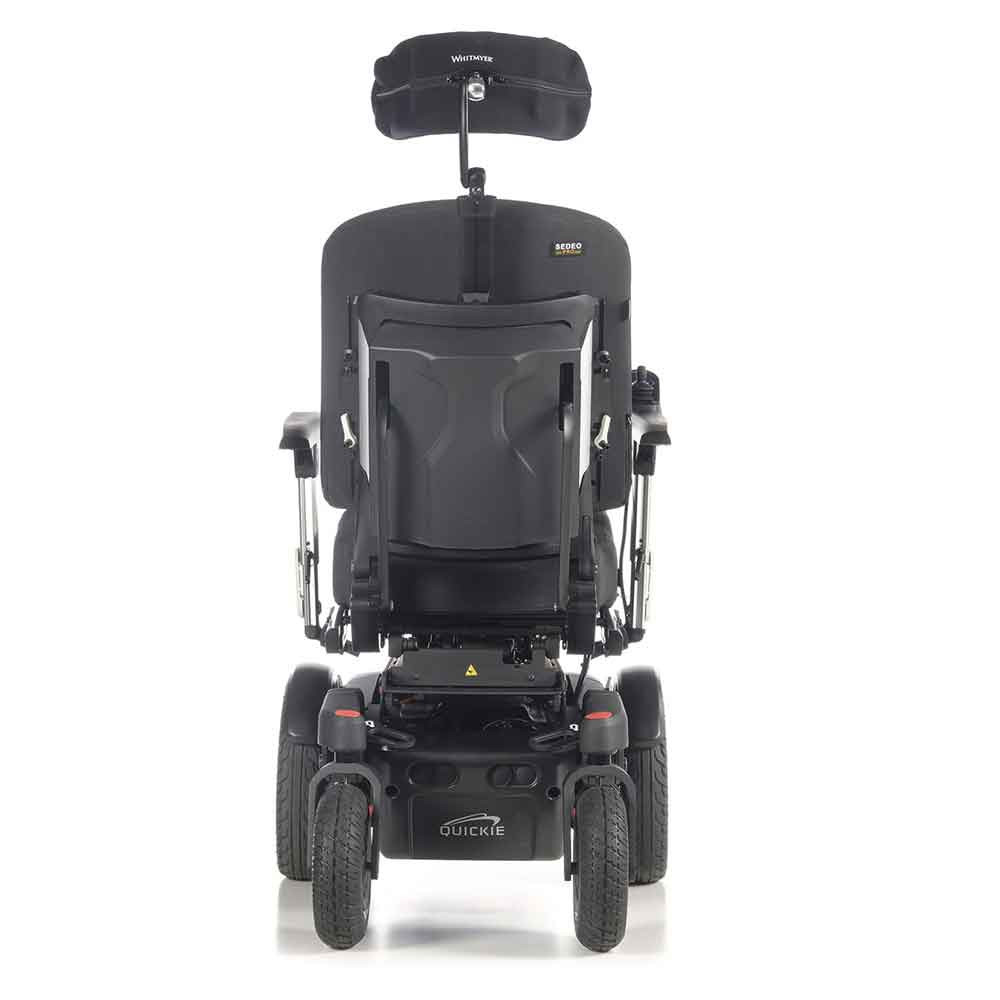

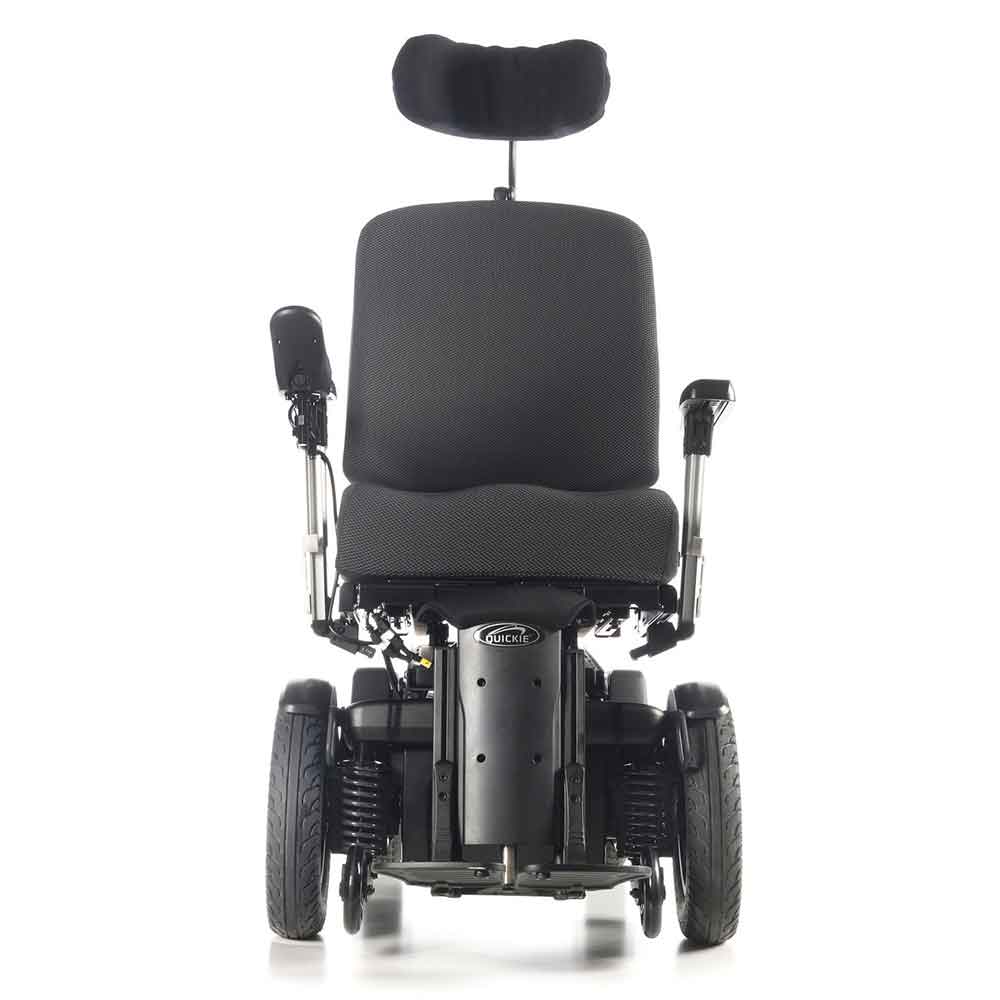

Front-Wheel Drive with Configurable SEDEO PRO Seating
The QUICKIE Q500 F brings together a front-wheel-drive powerchair base and SEDEO PRO seating for users who need an individual setup for everyday mobility.
- Adjustable ride characteristics: Spirit Level Technology combines a linked drive-wheel arrangement with adjustable suspension to help manage suitable uneven surfaces and cambers.
- Seating tailored around you: Configurable dimensions, cushions, backrests and supports allow the seating to be considered as one complete system.
- Optional powered positioning: Selected lift, tilt, recline and leg-support arrangements can be specified where appropriate.
Front-wheel drive has its own turning characteristics, including movement of the rear of the chair. Discuss your home, normal routes, transfers and transport requirements with Modern Mobility when choosing the final configuration.
SEDEO PRO Configurable Seating
SEDEO PRO combines an adjustable seating frame with a choice of cushions, backrests, armrests and positioning supports. The selected components should work together around your posture, comfort, transfers and control access. Powered positioning functions and additional supports depend on the chosen configuration and should be identified in your personalised quote.

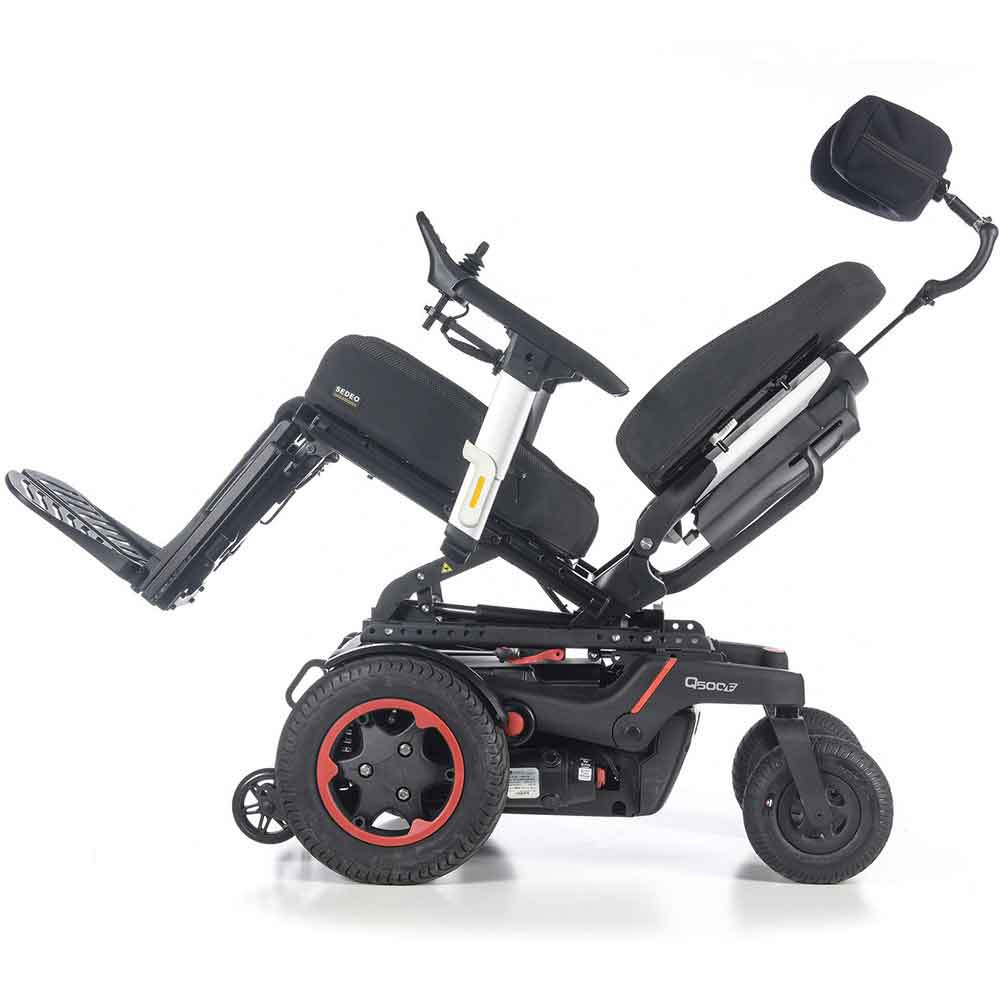

Need to lay down for pressure relief, or to relax? Maybe you want to reach those items on the top shelf of your kitchen or office? With a wide range of improved lift and tilt options the SEDEO PRO seating system allows you to find the positions to suit you and your lifestyle, and ensures maximum comfort as you transition.
The anti-shear backrest incorporates 0 – 50 degrees of movement to minimise shear forces on your back, while the power centre mount legrest goes to the floor, or from 0 – 90 degrees. Both assuring you of maximum comfort as you transition.

What do you look for in a seating system? Powered options? A comfortable cushion? Transfer bars? Whatever your requirements the SEDEO PRO’s comprehensive range of options means you can get exactly what you want without the need for special requests. And if your requirements are really bespoke? There’s always our Built-4-Me department on hand to create something truly tailored to you.

The SEDEO PRO extra deep flexi back provides maximum support and a comfortable seating position ensuring you always feel well supported. More complex positioning requirements? Simply select from our comprehensive range of laterals, hip or knee supports or pommels.

| Manufacturer | Sunrise Medical / QUICKIE |
| Drive Configuration | Front-wheel drive |
| Seating System | SEDEO PRO |
| Published Width* | 640mm / 64cm |
| Published Maximum Length* | 1340mm / 134cm |
| Turning Radius* | 735mm / 73.5cm |
| Seat Width* | 380–560mm |
| Seat Depth* | 400–560mm |
| Published Seat Height* | 415–490mm |
| Backrest Height* | 440–560mm |
| Backrest Recline Range* | 90°–150°; adjustment method depends on configuration |
| Overall Height* | Depends on seating, backrest, headrest and positioning; confirm the complete configured measurement |
Performance and Configuration
| Manufacturer Speed Packages* | 6, 8, 10 or 13km/h; availability depends on the selected package |
| Suspension | Adjustable suspension with Spirit Level Technology |
| Published Battery Options* | 60Ah; optional 80Ah configuration |
| Maximum Manufacturer-Quoted Range* | Up to 40km / approximately 24.9 miles, depending on configuration and conditions |
| Maximum Safe Slope* | 6° |
| Maximum Kerb Climb* | 70mm |
| Controller Options* | VR2 or selected R-Net configurations |
| Lighting* | Lights and indicators according to the selected configuration |
| Maximum User Weight* | 160kg / approximately 25 stone 3lb |
| Complete Chair Weight* | Confirm for the selected seating, batteries, powered functions and accessories |
| Powered Positioning* | Selected lift, tilt, recline and leg-support options |
Confirm your supplied setup: Battery capacity, speed, controls, lighting and powered functions should be specified in your quote. The maximum quoted range is not a guarantee for every configuration.
*Manufacturer reference figures. Dimensions, weight, capacity and compatible options vary with the selected equipment. Practical range depends on terrain, user weight, temperature, battery condition and driving style. Obtain the final configured measurements and weight before checking access or selecting transport equipment.
Match the Drive Base and Seating to Your Routine
The Q500 F is worth considering when front-wheel-drive handling and configurable seating suit your everyday mobility requirements.
Compare our complex powerchairs if you need to explore different seating systems, powered functions or drive bases.
Before choosing: Discuss seating, normal routes, home access and transport together. Ask for an itemised quote showing the proposed configuration and additional costs.
Check the Complete Chair Against Your Surroundings
The final Q500 F setup needs to work with your home, normal journeys and vehicle arrangements. Confirm complete measurements rather than relying on the drive-base figures alone.
Indoor Access
Measure doorways, corridors and lifts. Check space for turning, rear swing and approaching furniture with your selected foot supports and controls.
Routes and Range
Discuss your usual surfaces, gradients and journey distances. Confirm the battery package supplied and allow a practical margin below the quoted maximum range.
Vehicle Loading
Obtain the configured weight and dimensions before choosing a ramp or lift. Check vehicle entrance height and space with the actual seating and headrest fitted.
Charging and Storage
Provide a dry storage location with suitable mains access and room to reach the charging socket. Follow the instructions for the batteries and charger supplied.
Occupied Vehicle Transport
The manufacturer lists the Q500 F as crash tested to ISO 7176-19. Confirm that your exact seating and accessory configuration is suitable for occupied transport, then follow the applicable instructions for wheelchair securement and occupant restraints.

Quickie Q500 Series
The Q500 series offers the best performing drive bases in its class, all offering a rigid and responsive ride matched by increased stability over a variety of terrains. Additional enhancements mean that you will have the confidence and capability to go further than ever before.They're great together
Designed to stabilise the pelvis, protect the skin and position the body, JAY’s comprehensive range of powered wheelchair cushions are highly comfortable, lightweight, low maintenance and can accommodate a wide range of mobility seating requirements. Our wheelchair cushions can also be combined with optional positioning pieces (such as lateral thigh supports) to provide unique positioning.
With so many options available, you’re sure to find a JAY cushion that suits your individual needs.
Control at your fingertips
Control your environment with the Q500 R SEDEO PRO and its advanced controller technology. Available with the reliable VR2 control and the superior R-Net advanced joystick, the large, easy-to-read HD display and simple to control paddle switches allow for intuitive operation.
Connect
Seamlessly take control of your environment using the integrated Infra Red functionality. Control your TV, docking stations and other home entertainment systems easily via your joystick.
Bluetooth & iDrive
Control your phone, computer, tablet and any other Bluetooth and i-devices with this useful optional extra. Connect and control up to four devices.
Quickie Patented Assignable Buttons
Change the function on any button on your joystick to any command you desire, thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons, for quicker, simpler and smoother access to commonly used functions without having to use your joystick.
Check Out the Quickie Q500 Series
The Quickie Q500 has many customisable options from picking your seating system that could be chosen depending on needs/ requirements or comfort. That’s not all you get to pick depending on preference or requirement you can pick wheel type and much more.
F = Front-Wheel Drive | M = Mid-Wheel Drive | R = Rear-Wheel Drive
Products Not Found
QUICKIE Q500 F SEDEO PRO FAQs
Answers to common questions about front-wheel drive, seating, batteries, dimensions, controls and transport.
F identifies the front-wheel-drive model. The Q500 M uses mid-wheel drive and the Q500 R uses rear-wheel drive. Their handling and specifications differ.
SEDEO PRO is a configurable seating system with adjustable dimensions and a choice of cushions, backrests, supports and positioning functions. The setup should be selected around the individual user.
These depend on the selected configuration. Ask for your quote to specify each powered function and its cost rather than assuming every feature shown is included.
The manufacturer lists a 60Ah configuration and an optional 80Ah package. Ask Modern Mobility to confirm the exact batteries supplied and include their specification in your quote.
The manufacturer quotes a maximum range of up to 40km, approximately 24.9 miles. Actual range depends on the battery and speed package, terrain, user weight and operating conditions.
The published UK range includes 6, 8, 10 and 13km/h packages. Availability and the speed supplied depend on configuration, so confirm the selected package in your quotation.
The published maximum is 160kg, approximately 25 stone 3lb. Confirm the capacity of the complete seating configuration and any fitted equipment.
Published dimensions include a 640mm width and maximum length of 1340mm. Overall height and complete weight depend on the selected setup; obtain the configured measurements before arranging transport.
No. These capabilities depend on the controller and additional equipment selected. Confirm the required package when requesting your quote.
The manufacturer lists the Q500 F as crash tested to ISO 7176-19. Confirm suitability for your exact seating and accessory configuration, and follow the applicable wheelchair-securement and occupant-restraint instructions.
